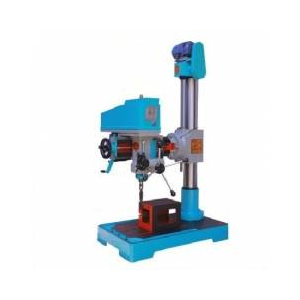

SMS radial drilling machine without accessories possesses a 32-mm drilling capacity, a column diameter of 127 mm, and a 1.5 HP motor. The device has a base area of dimensions 1050 x 625 mm.
Product Specifications:
The drilling machine's wooden box is of the size 1400 x 850 x 2100 mm.
Its spindle speed is 8, and it has a 72 mm Ram diameter.
The drilling machine has a height of 1575 mm and occupies a floor space of 625 x 950 mm.
It weighs 500 kilograms.
Key Features:
A 214 mm spindle travel and eight spindle speed makes the drilling machine efficient.
Powered by a 1.5 HP drill head motor and 0.5 HP elevating motor, the drill provides quick and effortless performance.
It occupies a tiny place on the floor without becoming an obstruction to the free movement of others.
