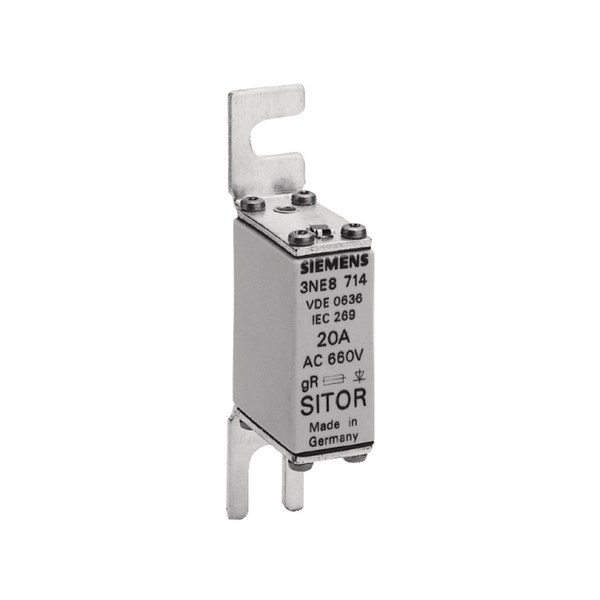

Generally, a fuse is an electrical device built around a conductive strip that melts and separates in an excessive current. Siemens - 3NC type 690 V AC Fuse for semiconductor protection SITOR 3NE / 3NC is also known as high-speed fuses or rectifier fuses because they help make electricity flow faster. Their integral melting values of the fuses are low, and their peak let-through currents are high. Fuse types made of semiconductors can have voltage ratings that range from 130 to 1,500 volts. These fuses help protect power supplies, rectifiers, diodes, thyristors, triacs, transistors, and other solid-state power semiconductor devices from damage when they are on. They come in ferrule, bolt-in, blade, and hockey puck styles. The 690 V AC Fuse for semiconductor protection SITOR 3NE / 3NC has a white coloured body.
Product Specifications:
Manufactured By: Siemens
DIN size: 3
Model: 3NC84313C
Rated Current: 500 A
Rated Voltage: 1000 V AC
Utilisation category: aR
ROHS Compliant: Yes
Key Features:
It has a high rated breaking capacity
It is durable
