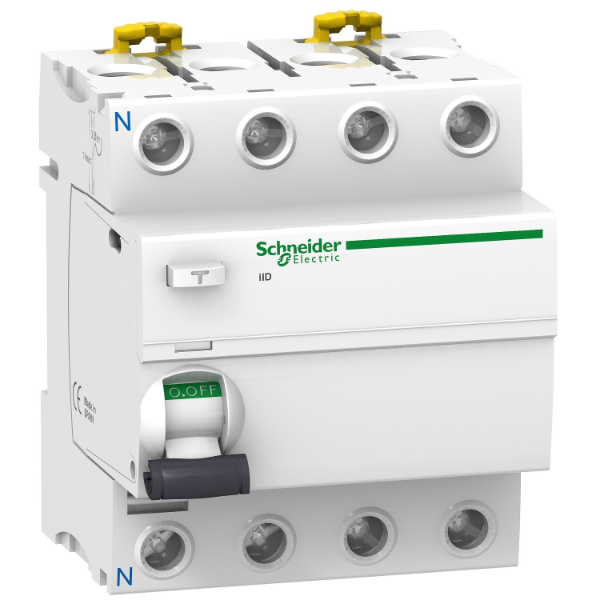

Schneider A9R11491 - 100 A, 4 Pole AC Residual Current Circuit Breaker


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Schneider A9R11491 - 100 A, 4 Pole AC Residual Current Circuit Breaker

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Schneider - 100 A, 4 Pole AC Residual Current Circuit Breaker has the earth leakage sensitivity. The main function is to detect the electrical leakage currents, thus ensuring protection against short circuits.100 A, 4 Pole AC Residual Current Circuit Breaker is designed with low voltage and has Electromagnetic Compatibility. 4 Pole AC Residual Current Circuit Breaker have different Residual Current Sensitivity Tripping levels. In addition, AC Residual Current Circuit has mercury-free material, and that will provide high-quality service. Circuit Breakers are used to break the flow of electric current, designed with halogen-free electrical parts.

Product Specifications:

  • Brand: Schneider
  • Earth Leakage Sensitivity: 30 mA
  • Model: A9R11491
  • Module width: 18 mm
  • Network Frequency: 50/60 Hz
  • Network Type: AC
  • Number of Modules: 4
  • Number of Poles: 4
  • Product: AC Residual Current Circuit Breaker
  • Rated Current: 100 A
  • Rated Operational Voltage: 380 to 415 V AC
  • Mounting support: DIN rail
  • 9 mm pitches: 8
  • Height: 91 mm
  • Width: 72 mm
  • Depth: 73.5 mm
  • Product weight: 0.37 kg
  • Colour: White
  • Mechanical durability: 20000 cycles

Key Features:

  • Electromagnetic Compatibility
  • Mercury Free
  • Halogen-free plastic parts product
Product Specifications

GENERAL

Brand:
Schneider
Earth Leakage Sensitivity:
30 mA
Model:
A9R11491
Module width:
18 mm
Network Frequency:
50/60 Hz
Network Type:
AC
Number of Module:
4
Number of Poles:
4
Product:
AC Residual Current Circuit Breaker
Rated Current:
100 A
Rated Operational Voltage:
380 to 415 V AC
