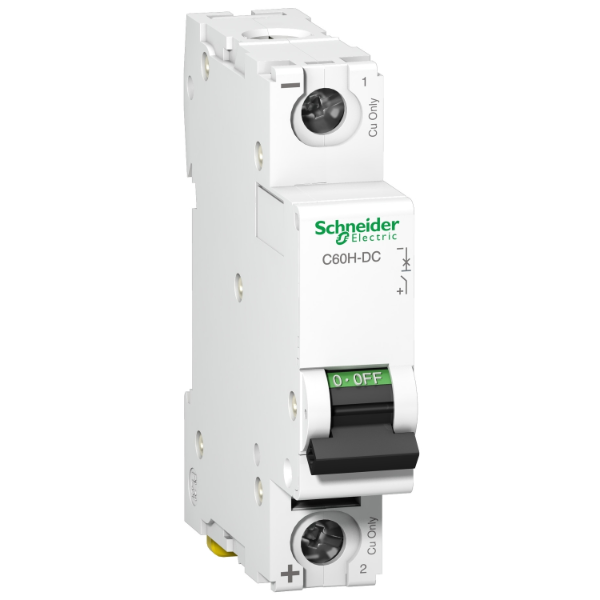

Schneider 63 A, 1 Pole C Curve DC Miniature Circuit Breaker operates at 250 V with a rated current of 63 A. It is a safety device that has both a thermal and an electromagnetic release. A DC miniature circuit breaker is employed because it allows a battery bank to supply close/trip power to the breaker control circuits in the case of a complete AC power failure. The operation mechanism offers the advantages of high dependability, low failure rate, lengthy maintenance cycle, and minimal maintenance workload. Schneider uses high-quality, durable plastic for long-term use to manufacture these miniature circuit breakers with 1 pole. C curve Miniature Circuit Breakers are useful where the loads have a small amount of in-rush current detected as soon as the circuit is complete. A circuit with a minimal transformer load is perfect for this application. 1 Pole C Curve DC Miniature Circuit Breakers also provide a convenient location to turn off current to a circuit to repair or replace any of the fixtures served by it. On the other hand, a circuit breaker can interrupt current flow when current sensors diagnose a fault.
PRODUCT SPECIFICATIONS:
● Brand: Schneider
● Curve Code: C
● Local Signalling: ON/OFF Indication
● Model: A9N61519
● Module width: 18 mm
● Network Frequency: 50/60 Hz
● Network Type: DC
● Number of Module: 1
● Number of Poles: 1.
● Product: DC Miniature Circuit Breaker
● Rated Current: 63 A
● Rated Operational Voltage: 250 V DC
KEY FEATURES:
● Low failure rate
● Easy handling
● High dependability
● Durable
