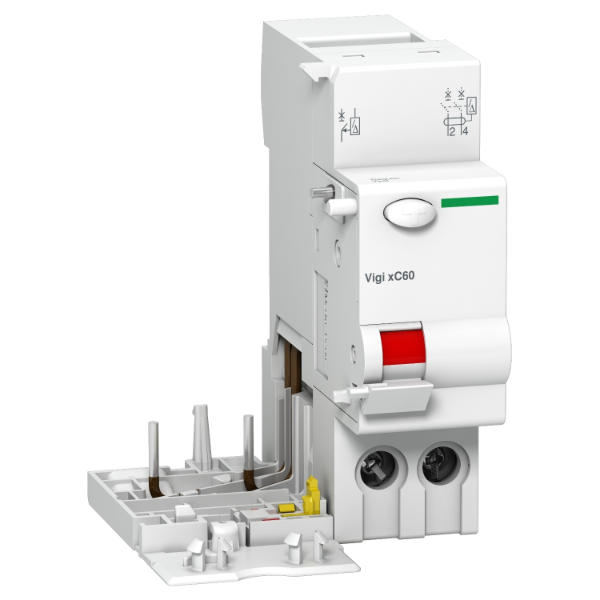

Schneider A9N26611 - 63 A, 2 Pole VIGI XC60 Earth Leakage Add On Block


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Schneider A9N26611 - 63 A, 2 Pole VIGI XC60 Earth Leakage Add On Block

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Schneider - 63 A, 2 Pole VIGI XC60 Earth Leakage Add On Block is a flexible MCB of any tripping curve to suit applications. The 63 A, 2 Pole VIGI XC60 Earth Leakage Add On Block ensures the best 3 in 1 protection. 2 Pole VIGI XC60 Earth Leakage Add On Block does not require any auxiliary supply. VIGI XC60 Earth Leakage Add On Block has AC Class protection. Earth Leakage Add On Block has a current supply of 63 A and is equipped with 2 poles. This Add On Block has an earth leakage sensitivity of 30mA and a frequency of 50/6-Hz. It is immune to nuisance tripping due to transient overvoltages.

Product Specifications:

  • Brand: Schneider
  • Product ID: A9N26611
  • Range: Acti 9
  • Number of poles: 2
  • Rated current: 63A
  • Earth-leakage protection time delay: Instantaneous
  • Earth leakage protection type: Type AC
  • Network frequency: 50/60Hz
  • Range compatibility: Acti 9 iC60
  • Range compatibility: Acti 9 iC6
  • Rated impulse withstand voltage: 6kV
  • Rated insulation voltage: 500 V AC 50/60 Hz
  • Height: 87 m
  • Width: 72 mm
  • Depth: 74.5 mm
  • Product weight: 150 g

Key Features:

  • Clip-On Mounting Mode
  • DIN Rail Mounting support
  • Red indicator light on the front face
Product Specifications

GENERAL

Brand:
Schneider
Earth Leakage Sensitivity:
30 mA
Local Signalling:
Red indicator Light on the Front Face
Model:
A9N26611
Module:
2
Module width:
18 mm
Network Type:
AC
Poles:
2
Product:
VIGI XC60 Earth Leakage Add On Block
Rated Current:
63 A
Rated Operational Voltage:
230 to 240 V AC
