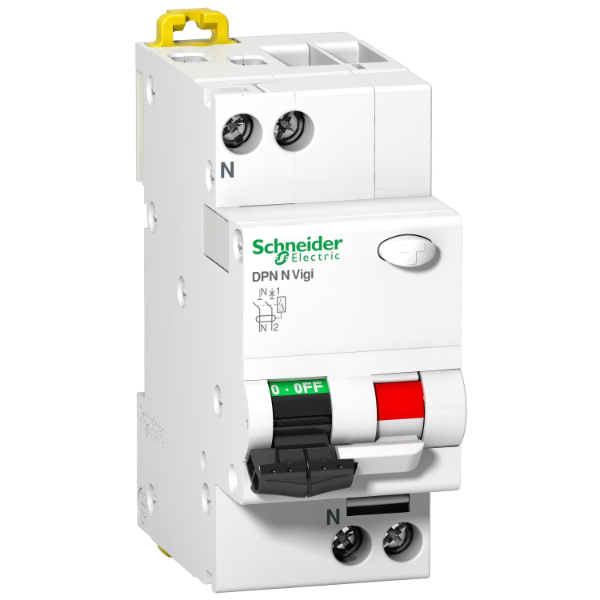

Schneider A9N19687 - 25 A, 1P+N Pole AC Residual Current Breaker Overload


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Schneider A9N19687 - 25 A, 1P+N Pole AC Residual Current Breaker Overload

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Schneider - 25 A, 1P+N Pole AC Residual Current Breaker Overload is a product of the Acti 9 series where ACTI stands for Advanced Communication Technology that Inspires. The 25 A, 1P+N Pole AC Residual Current Breaker Overload is an earth leakage circuit breaker. The main difference between an MCB and a Residual Current breaker (RCB) is that an RCB detects current leakage and breaks the circuit to prevent any life-threatening situation due to an electrical shock. The 1P+N Pole AC Residual Current Breaker Overload has a thermomagnetic trip unit technology. It is a combination of the thermal trip and Magnetic trip. The AC Residual Current Breaker Overload has a toggle type control, and the Current Breaker comes with a warranty of 18 months.

Product Specifications:

  • Net Weight: 0.19 kg
  • Electrical Durability: 1000 Cycles
  • Maximum Operating altitude: 2000 m
  • Temperature range for operation: -5℃ to 60℃
  • Temperature range for storage: -40℃ to 60℃
  • Earth Leakage Sensitivity: 300mA
  • Mechanical Durability: 20000 cycles
  • Electrical Durability: 10000 cycles
  • Rated Current: 25A
  • Rated Voltage: 230V for AC
  • Rated Impulse Withstand Voltage: 4kV
  • Relative humidity: 95%
Product Specifications

GENERAL

Brand:
Schneider
Earth Leakage Sensitivity:
300 mA
Local Signalling:
ON/OFF Indication
Model:
A9N19687
Module:
2
Module width:
18 mm
Network Type:
AC
Poles Description:
1P+N
Product:
AC Residual Current Breaker Overload
Rated Current:
25 A
Rated Operational Voltage:
230 V AC
