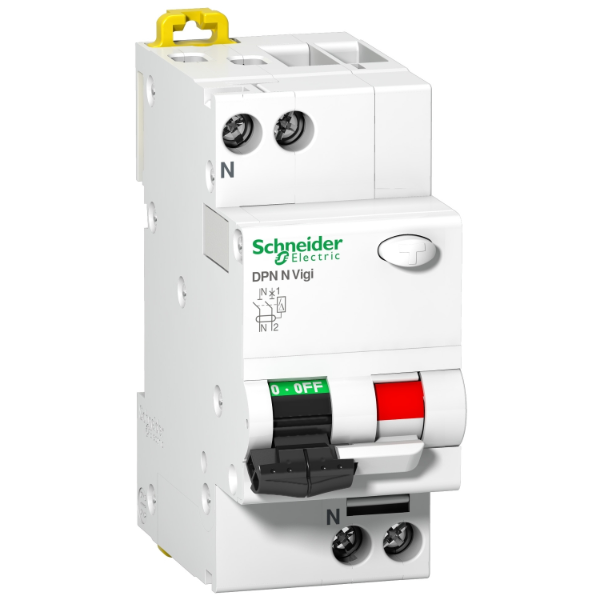

Schneider A9N19668 - 32 A, 1P+N Pole AC Residual Current Breaker Overload


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Schneider A9N19668 - 32 A, 1P+N Pole AC Residual Current Breaker Overload

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Schneider - 32 A, 1P+N Pole AC Residual Current Breaker Overload observe regulations and AC class protection. 1P+N Pole AC Residual Current Breaker Overload is not susceptible to nuisance tripping caused by transient overvoltages. 1P+N Pole AC Residual Current Breaker Overload is suitable for indicator and tripping auxiliary, tripping characteristics. In the event of an earth leakage current, 1P+N Pole AC Residual Current Breaker Overload protects against the risk of shock or electrocution, as well as the risk of fire. The AC Residual Current Breaker Overload belongs to the DPN N Vigi series of Current Breaker.

Product Specifications:

  • Brand: Schneider
  • Model: A9N19668
  • Product: AC Residual Current Breaker Overload
  • Module: 2
  • Local Signaling: ON/OFF indication
  • Earth Leakage Sensitivity: 30 mA
  • Number of Poles: 1P+N
  • Width: 18 mm
  • Rated Operational Voltage: 230 V for AC

Key Features:

  • Auxiliaries can be used for indication and tripping
  • Good protection in AC Current
Product Specifications

GENERAL

Brand:
Schneider
Earth Leakage Sensitivity:
30 mA
Local Signalling:
ON/OFF Indication
Model:
A9N19668
Module:
2
Module width:
18 mm
Network Type:
AC
Poles Description:
1P+N
Product:
AC Residual Current Breaker Overload
Rated Current:
32 A
Rated Operational Voltage:
230 V AC
