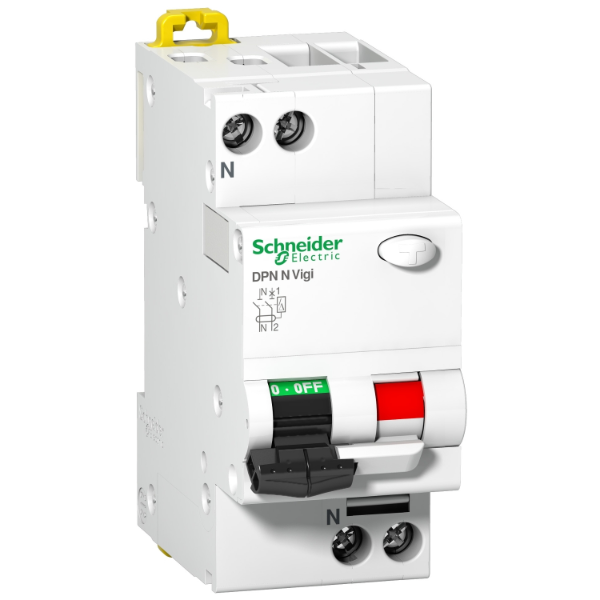

Schneider A9N19661 - 6 A, 1P+N Pole AC Residual Current Breaker Overload


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Schneider A9N19661 - 6 A, 1P+N Pole AC Residual Current Breaker Overload

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Schneider - 6 A, 1P+N Pole AC Residual Current Breaker Overload protects against earth faults and leakage currents and serves as an isolation device. The 1P+N Pole AC Residual Current Breaker Overload has a 6kA Capacity for high short circuit current. When an Earth fault/leakage current occurs and exceeds the rated sensitivity, the 1P+N Pole AC Residual Current Breaker Overload automatically measures and disconnects. The AC Residual Current Breaker Overload comes with finger-protected connection terminals. For cable and comb-type busbar connections, dual termination is possible. External Voltage Fluctuation is not a problem because the Current Breaker is independent of the power supply and line voltage. Using a filtering device that prevents nuisance tripping due to transient voltage padlocking is convenient and straightforward. In addition, this Current Breaker can withstand abnormal heating and strong impactwith fire-resistant plastic parts.

Product Specifications:

  • Brand: Schneider
  • Model: A9N19661
  • Product: AC Residual Current Breaker Overload
  • Rated Current: 6 A
  • Rated Operational Voltage: 230 V for AC
  • Module: 2
  • Network Type: AC
  • Number of Poles: 1P+N
  • Width: 18 mm
  • Number of protected poles: 1
  • [In] rated current: 6 A at 30 °C
  • Network type: AC
  • Trip unit technology: Thermal-magnetic
  • Curve code: C
  • Earth-leakage sensitivity: 30 mA
  • Earth-leakage protection time delay: Instantaneous
  • Breaking capacity: 6000 A Icn at 230 V AC conforming to EN 61009

Key Features:

  • Protection against soil leakage in an instant
  • Technology for thermal-magnetic trip unit
Product Specifications

GENERAL

Brand:
Schneider
Earth Leakage Sensitivity:
30 mA
Local Signalling:
ON/OFF Indication
Model:
A9N19661
Module:
2
Module width:
18 mm
Network Type:
AC
Poles Description:
1P+N
Product:
AC Residual Current Breaker Overload
Rated Current:
6 A
Rated Operational Voltage:
230 V AC
