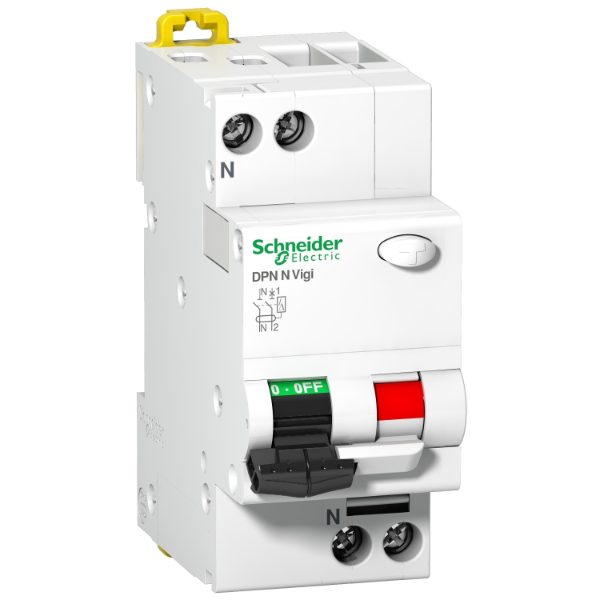

Schneider A9N19645 - 20 A, 1P+N Pole SI Residual Current Breaker Overload


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Schneider A9N19645 - 20 A, 1P+N Pole SI Residual Current Breaker Overload

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Schneider - 20 A, 1P+N Pole SI Residual Current Breaker Overload is a safety device that protects equipment to reduce the risk of harm from electric shock. The 20 A, 1P+N Pole SI Residual Current Breaker Overload protects against fire due to current leakage. The 1P+N Pole SI Residual Current Breaker Overload has a DC component network that ensures tripping on genuine earth-fault. The SI Residual Current Breaker Overload has a specific frequency response curve. This Schneider Current Breaker comes with a local signaling indicator. In addition, it comes with a DIN rail mounting support for ease of installation.

Product Specifications:

  • Brand: Schneider
  • Poles description: 1P + N
  • Neutral position: Left
  • Number of protected poles: 1
  • [In] rated current: 20 A at 30 °C
  • Network type: AC
  • Trip unit technology: Thermal-magnetic
  • Curve code: C
  • Earth-leakage sensitivity 300 mA
  • Earth-leakage protection time delay: Instantaneous Type
  • Type A-SI (Super Immunised)
  • Breaking capacity 6000 A Icn at 230 V AC conforming to EN 61009
  • [Ue] rated operational voltage: 230 V AC
  • Magnetic tripping limit: 5...10 x In

Key Features:

  • Complies to standard IEC/EN 61009
Product Specifications

GENERAL

Brand:
Schneider
Earth Leakage Sensitivity:
300 mA
Local Signalling:
ON/OFF indication
Model:
A9N19645
Module:
2
Module width:
18 mm
Network Type:
AC
Poles:
1P+N
Product:
SI Residual Current Breaker Overload
Rated Current:
20 A
Rated Operational Voltage:
230 V AC
