Schneider A9N19632 - 10 A, 1P+N Pole SI Residual Current Breaker Overload


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

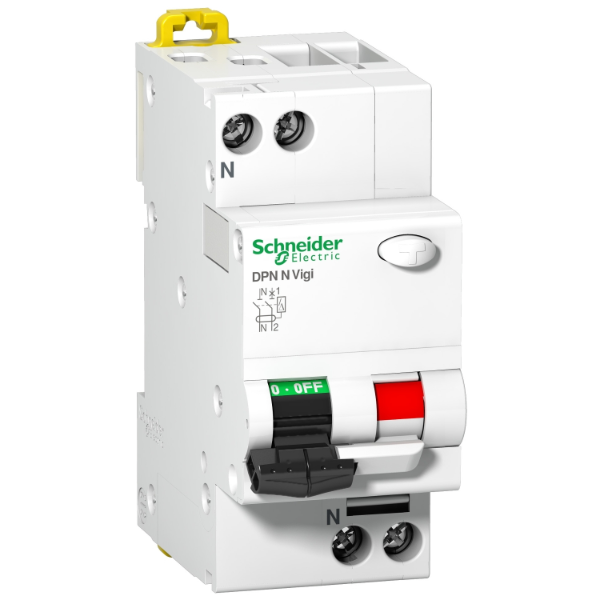

Schneider A9N19632 - 10 A, 1P+N Pole SI Residual Current Breaker Overload

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Schneider - 10 A, 1P+N Pole SI Residual Current Breaker Overload are designed with thermal-magnetic trip unit technology, and A-SI super immunised type. They are suitable for AC-type networks. The 10 A, 1P+N Pole SI Residual Current Breaker Overload is a combination of RCCB and MCB. It simultaneously protects from short circuits, overload. The 1P+N Pole SI Residual Current Breaker Overload is used for the protection of moderate and heavy appliances.This SI Residual Current Breaker Overload is small and compact, making it a space-efficient product. The Current Breaker comes with a toggle type control

Product Specifications:

  • Brand: Schneider
  • Earth Leakage Sensitivity: 30 mA
  • Module: 2
  • Module width: 18 mm
  • Network Type: AC
  • Poles: 1P+N
  • Rated Current: 10 A
  • Rated Operational Voltage: 230 V AC
  • Neutral position: Left
  • Number of protected poles: 1
  • [In] rated current: 10 A at 30 °C
  • Network type: AC
  • Trip unit technology: Thermal-magnetic
  • Curve code: C
  • Earth-leakage sensitivity: 30 mA
  • Earth-leakage protection time delay: Instantaneous
  • Type: Type A-SI (Super Immunised)
  • Breaking capacity: 6000 A Icn at 230 V AC conforming to EN 61009

Key Features:

  • DIN rail mounting support
  • IEC standard conforming
Product Specifications

GENERAL

Brand:
Schneider
Earth Leakage Sensitivity:
30 mA
Local Signalling:
ON/OFF indication
Model:
A9N19632
Module:
2
Module width:
18 mm
Network Type:
AC
Poles:
1P+N
Product:
SI Residual Current Breaker Overload
Rated Current:
10 A
Rated Operational Voltage:
230 V AC
