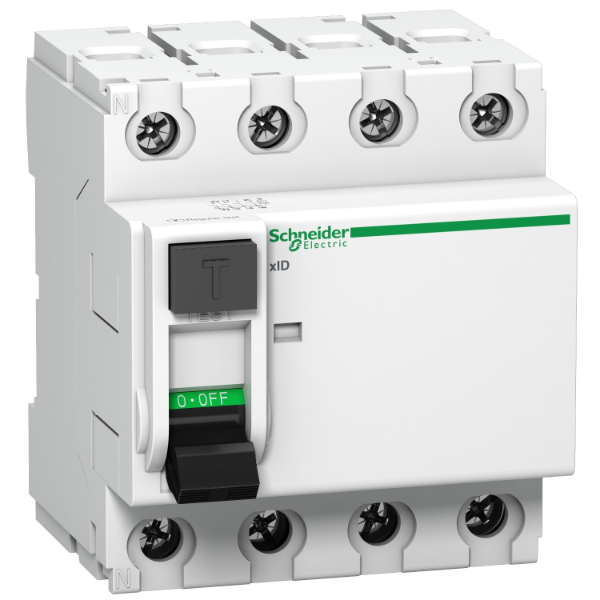

Schneider A9N16334 - 63 A, 4 Pole SI AC Residual Current Circuit Breaker


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Schneider A9N16334 - 63 A, 4 Pole SI AC Residual Current Circuit Breaker

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Schneider - 63 A, 4 Pole SI AC Residual Current Circuit Breakers are designed with earth leakage sensitivity. The centrifuge has 63 A-rated currents. Its main function is current sensing and automatically detects the fault or the current rate sensitivity and disconnects the circuit to protect from short circuits and unwanted overloads. 63 A, 4 Pole SI AC Residual Current Circuit Breaker compares the current entering the appliance via live wire and current leaving through the neutral wire. The 4 Pole SI AC Residual Current Circuit Breaker is a green premium sustainable product that does not contain lead or mercury. SI AC Residual Current Circuit Breakers have an AC-type network. These Circuit Breakers are made up of recyclable components.

Product Specifications:

  • Brand: Schneider
  • Earth Leakage Sensitivity: 300 mA
  • Module: 2
  • Module width: 18 mm
  • Poles: 4
  • Rated Current: 63 A
  • Rated Operational Voltage: 400 to 415 V AC
  • Earth-leakage protection class: Type A-SI (Super Immunised)
  • Network Frequency: 50 Hz
  • Mechanical durability: 4000 cycles
  • Electrical durability: 4000 cycles
  • IP degree of protection: IP20
  • Pollution degree: 2
  • Height81 mm
  • Width: 72 mm
  • Depth: 75 mm
  • Net weight: 370 g

Key Features:

  • Mercury Free
  • Durable
Product Specifications

GENERAL

Brand:
Schneider
Earth Leakage Sensitivity:
300 mA
Local Signalling:
ON, OFF, fault trip
Model:
A9N16334
Module:
2
Module width:
18 mm
Network Type:
AC
Poles:
4
Product:
SI AC Residual Current Circuit Breaker
Rated Current:
63 A
Rated Operational Voltage:
400 to 415 V AC
