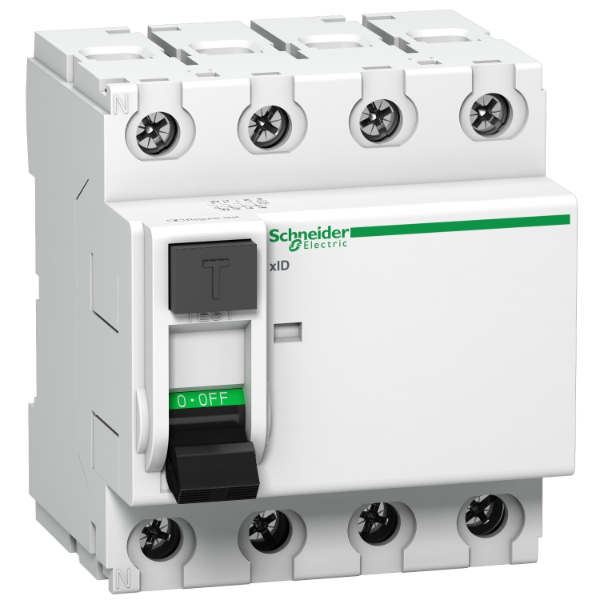

Schneider A9N16324 - 40 A, 4 Pole SI AC Residual Current Circuit Breaker


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Schneider A9N16324 - 40 A, 4 Pole SI AC Residual Current Circuit Breaker

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Schneider - 40 A, 4 Pole SI AC Residual Current Circuit Breaker has local signaling that provides an instantaneous response. The 40 A, 4 Pole SI AC Residual Current Circuit Breaker has an earth leakage sensitivity. It has 2 degrees pollution and 55 degrees centrifuge-rated relative humidity. They have tunnel-type connection terminals. The 4 Pole SI AC Residual Current Circuit Breaker has 3.5 N.m top or bottom tightening torque and 14 mm for top or bottom connection wire stripping length. The SI AC Residual Current Circuit Breaker has an IP20 protection type. The Circuit Breakers are mercury-free and are green premium sustainable products.

Product Specifications:

  • Brand: Schneider
  • Earth Leakage Sensitivity: 30 mA
  • Local Signalling: ON, OFF, fault trip
  • Model: A9N16324
  • Module: 2
  • Module width: 18 mm
  • Network Type: AC
  • Poles: 4
  • Product: SI AC Residual Current Circuit Breaker
  • Rated Current: 40 A
  • Rated Operational Voltage: 400 to 415 V AC
  • product certifications: ISI
  • IP degree of protection: IP20
  • Pollution degree: 2
  • Topicalization: 2 conforming to IEC 60068-1
  • Relative humidity:95 % at 55 °C
  • Ambient air temperature for operation: -5…40 °C
  • Ambient air temperature for storage: -40…85 °C

Key Features:

  • Mercury-free
  • Durable
  • Cost-Effective
  • Green premium product
Product Specifications

GENERAL

Brand:
Schneider
Earth Leakage Sensitivity:
30 mA
Local Signalling:
ON, OFF, fault trip
Model:
A9N16324
Module:
2
Module width:
18 mm
Network Type:
AC
Poles:
4
Product:
SI AC Residual Current Circuit Breaker
Rated Current:
40 A
Rated Operational Voltage:
400 to 415 V AC
