Schneider 16905 - 125 A, 4 Pole AC Residual Current Circuit Breaker


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

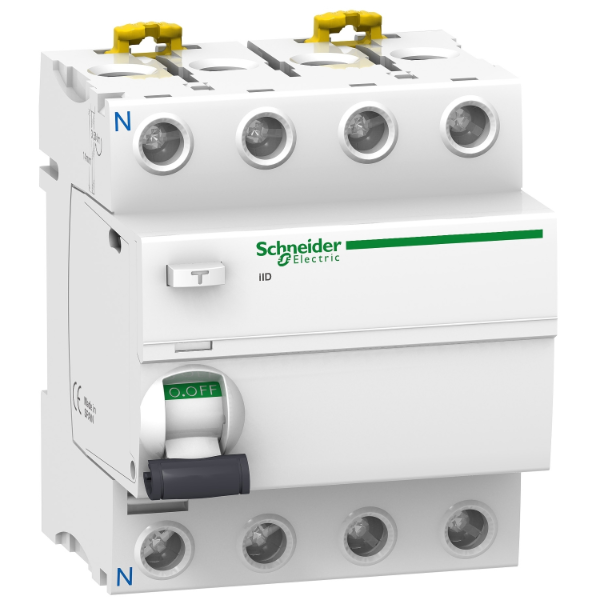

Schneider 16905 - 125 A, 4 Pole AC Residual Current Circuit Breaker

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Schneider - 125 A, 4 Pole AC Residual Current Circuit Breaker has the RCCB component type. It has an AC-type network. It is used to detect electrical leakage currents to give protection against short circuits. The 125 A, 4 Pole AC Residual Current Circuit Breaker is designed with mercury-free material to ensure its high quality. The 4 Pole AC Residual Current Circuit Breaker is designed with a low voltage rate. As a result, AC Residual Current Circuit Breaker has high earth leakage sensitivity.The Current Circuit Breaker is used to break the electric flow of current. Circuit Breakers are made up of halogen-free material and which makes them durable.

Product Specifications:

  • Range: Acti 9
  • Product name: Acti9 RCCB-ID
  • Product or component type: Residual current circuit breaker (RCCB)
  • Device short name: RCCB-ID
  • Poles description: 4P
  • Neutral position: Left
  • [In] rated current: 125 A
  • Network type: AC
  • Earth-leakage sensitivity: 30 mA
  • Earth-leakage protection time delay: Instantaneous
  • Earth-leakage protection class: Type AC
  • Rated breaking and making capacity: Im = 1250 A 400 V conforming to IEC 61008
  • Rated conditional short-circuit current: Inc 10 kA 125 A

Key Features:

  • Toxic heavy metal-free
  • Mercury-free
Product Specifications

GENERAL

Brand:
Schneider
Earth Leakage Sensitivity:
30 mA
Model:
16905
Module width:
18 mm
Network Frequency:
50/60 Hz
Network Type:
AC
Number of Module:
4
Number of Poles:
4
Product:
AC Residual Current Circuit Breaker
Rated Current:
125 A
Rated Operational Voltage:
380 to 415 V AC
