Buy Satya Prakash Machine Tools 40 R - Radial Type Drilling Machine Online

Satya Prakash Machine Tools 40 R - 40 mm Radial Type Drilling Machine without Electric Motor


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 40 R - 40 mm Radial Type Drilling Machine without Electric Motor

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

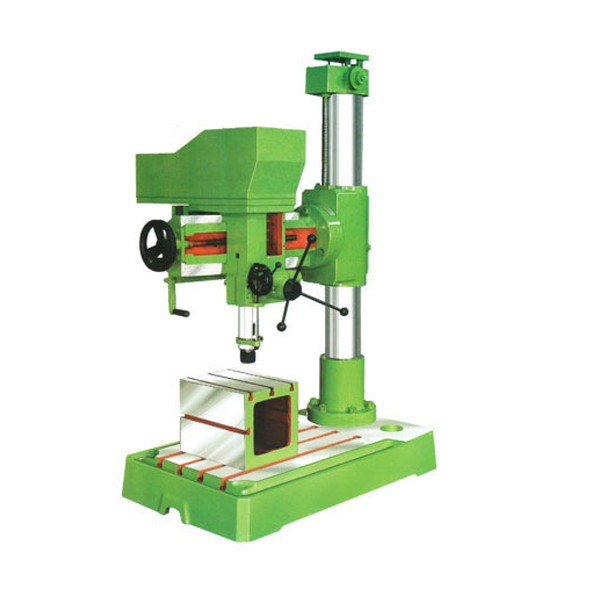

Satya Prakash Machine Tools 40 R is one of the radial type drilling machines having 40mm of capacity with a box table. These power tools have SG iron gears with a molded coolant tank. Satya Prakash Machine Tools Radial Type Drilling Machine comes with an oil bath lifting gearbox and can work without an electric motor.

Product Attributes:

Column Diameter: 165
RAM Diameter: 78
Drill Head Motor: 1.5 HP, 960 RPM
Drilling Capacity in Mild Steel: 40
Lifting Motor: 0.5 HP, 1440 RPM
Lifting V Belt: A 23
Max Distance Spindle Nose-Table: 620
Max. Distance Spindle Center-Column: 875x360
Max. Min. Distance Spindle Nose-Base: 925 to 230
Model: 40 R
No. of Spindle Speeds: 50 to 1735, 8
Height: 2000
Base size: 760x1290x190
Box Table size: 305x305x380
Spindle Feed By Hand Star Lever and Worm
Spindle Nose: MT 4
Spindle Travel: 260
Tapping Capacity: 32
V Belt: B 47
Weight: 900 Kg
Working Area Base: 870x760

Benefits:

High efficiency
Durable
Reliable

Product Specifications

GENERAL

Base Size:
760x1290x190 mm
Box Table Size:
305x305x380 mm
Brand:
Satya Prakash Machine Tools
Country of Origin:
India
Diameter of Column:
165
Diameter of Ram:
78
Drilling Capacity in Mild Steel:
40 mm
Lifting V Belt:
A 23
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Center to Column:
875x360 mm
Maximum Distance Spindle Nose to Table:
620 mm
Maximum/ Minimum Distance Spindle Nose to Base:
925 to 230 mm
Model:
40 R
Number of Spindle Speed:
50 to 1735, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Spindle Feed By:
Hand Star Lever and Worm
Spindle Nose:
MT-4
Spindle Travel:
260
Tapping Capacity:
32
Total Height of Machine:
2000 mm
V Belt:
B 47
Weight:
900 Kgs
Working Area of Base:
870x760
