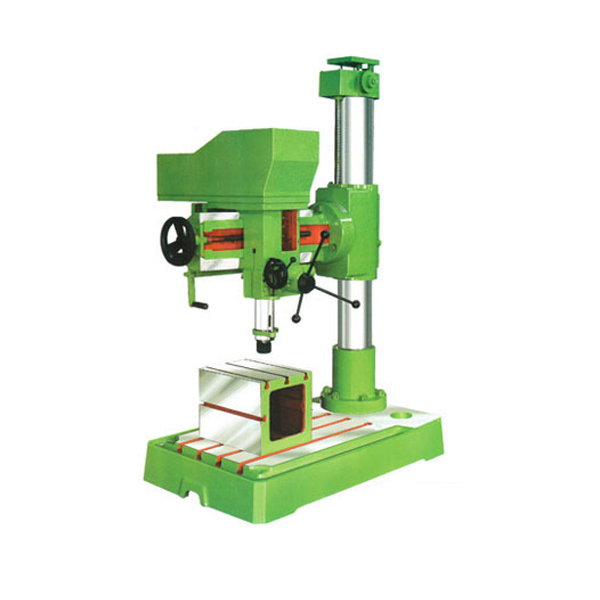

Satya Prakash Machine Tools Radial Type Drilling Machine has 40 mm of capacity with an auto-feed. These drilling machines have s.g. Iron gears and an oil bath lifting gearbox. Satya Prakash Machine Tools 40 R A comes with a molded coolant tank and can work without an electric motor.
Product Attributes:
Model: 40 RA
Column Diameter: 165
RAM Diameter: 78
Drill Head Motor: 1.5 HP, 960 RPM
Drilling Capacity in Mild Steel: 40
Lifting Motor: 0.5 HP, 1440 RPM
Lifting V Belt: A 23
Max Distance Spindle Nose-Table: 620
Max. Distance Spindle Center-Column: 875x360
Max. Min. Distance Spindle Nose-Base: 925 to 230
No. of Spindle Speeds: 50 to 1735, 8
Number of Autofeed: 0.04/0.08
Height: 2000
Size of Base: 760x1290x190
Size of Box Table: 305x305x380
Spindle Feed By Hand Auto
Spindle Nose: MT 4
Spindle Travel: 260
Tapping Capacity: 32
V Belt: B 47
Weight: 900 Kg
Working Area of Base: 870x760
Benefits:
High efficiency
Durable
Reliable
