Buy Satya Prakash Machine Tools 40 R A A - Radial Type Drilling Machine Online

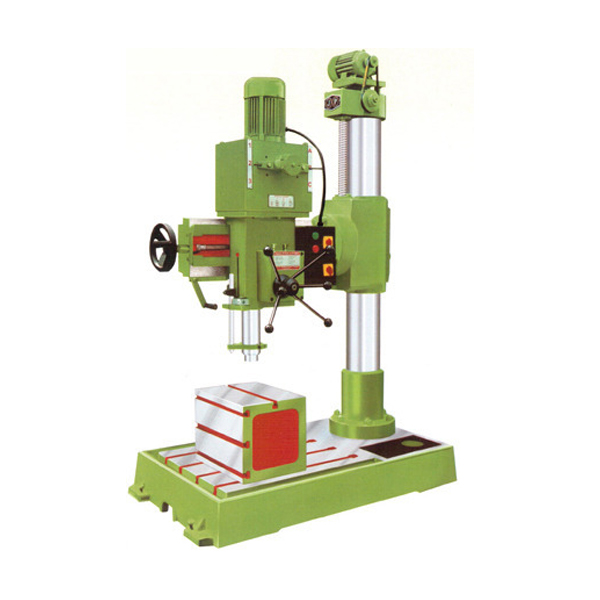

Satya Prakash Machine Tools 40 R A A - 40 mm Radial Type Drilling Machine with All Geared Auto Feed, Fine Feed


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 40 R A A - 40 mm Radial Type Drilling Machine with All Geared Auto Feed, Fine Feed

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Satya Prakash Machine Tools 40 R A A has 40 mm of capacity with a box table. These drills have an auto-feed. These power tools have an oil bath lifting gearbox with complete Ele. Satya Prakash Machine Tools Radial Type Drilling Machine comes with a molded coolant tank and can work without an electric motor.

Product Attributes:

Column Diameter: 165
RAM Diameter: 78
Drill Head Motor: 2 HP, 960 RPM
Drilling Capacity in Mild Steel: 40
Lifting Motor: 0.5 HP, 1440 RPM
Lifting V Belt: A 23
Max Distance Spindle Nose to Table: 620
Max. Distance Spindle Center to Column: 875x360
Max. Min. Distance Spindle Nose to Base: 925 to 230
Model: 40 RAA
No. of Spindle Speeds: 80 to 1500
Number of Autofeed: 0.04/0.08
Height: 2000
Base size: 760x1290x190
Box Table size: 305x305x380
Spindle Feed By Hand and Auto feed
Spindle Nose: MT 4
Spindle Travel: 260
V Belt: B 47
Weight: 1000 Kg
Working Area of Base: 870x760

Benefits:

Durable
Reliable
High efficiency

Product Specifications

GENERAL

Base Size:
760x1290x190 mm
Box Table Size:
305x305x380 mm
Brand:
Satya Prakash Machine Tools
Country of Origin:
India
Diameter of Ram:
78 mm
Drill Head Motor:
2 HP, 1440 RPM
Drilling Capacity in Mild Steel:
40 mm
Elevating Motor:
0.5 HP, 1440 RPM
Lifting Vee Belt:
A 23
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Base:
620
Maximum/ Minimum Distance Spindle Nose to Base:
925 to 230
Model:
40 R A A
Number of Auto Feed:
0.05
Number of Spindle Speed:
80 to 1500
Overall Height of Machine:
2000 mm
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Spindle Feed By:
Hand and Auto Feed
Spindle Nose:
MT-4
Spindle Travel:
260
Working Area of Base:
870 x 760 mm
