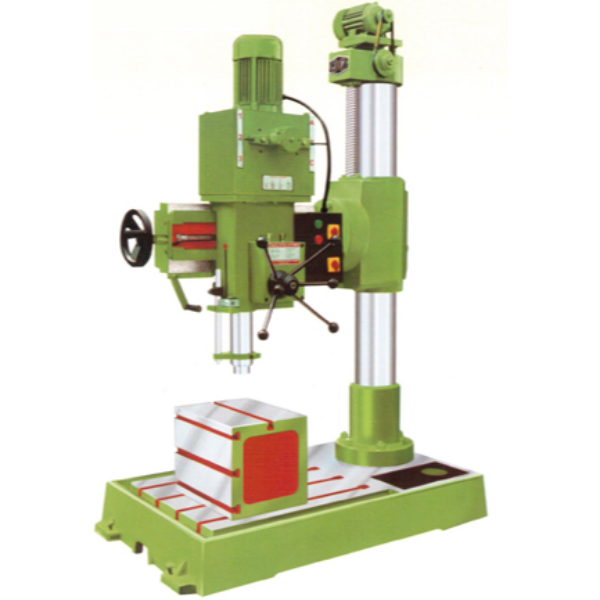

Satya Prakash Machine Tools 40 R A A - 40 mm Radial Type Drilling machine with Box table, S.G.Iron Gears, Molded Coolant Tank and Oil bath Lifting Gear box with 450 mm Extra Long Pillar


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 40 R A A - 40 mm Radial Type Drilling machine with Box table, S.G.Iron Gears, Molded Coolant Tank and Oil bath Lifting Gear box with 450 mm Extra Long Pillar

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

With an elevating motor of 0.5 Horsepower and 1440 RPM, the 40 R A A radial type drilling machine has a moulded coolant tank attached to it with an oil bath lifting gearbox for extra protection to the machine. Radial type drilling machines are known for the precision drilling and mass manufacture of accurate drilling down to the exact millimetre of the depth required.

Product specification:

Brand Name: Satya Prakash Machine Tools

Model Name: 40R AA

Number of spindle speed: 80 to 1500

Working area of the base: 870X 760

Drilling capacity in mild steel: 40 mm

Maximum/ Minimum Distance spindle Nose to the base: 925 to 230

Lifting V belt of the machine: A 23

Product Specifications

GENERAL

Base Size:
760x1290x190 mm
Box Table Size:
305x305x380 mm
Brand:
Satya Prakash Machine Tools
Country of Origin:
India
Diameter of Ram:
78 mm
Drill Head Motor:
2 HP, 1440 RPM
Drilling Capacity in Mild Steel:
40 mm
Elevating Motor:
0.5 HP, 1440 RPM
Extra Long Pillar:
450 mm
Lifting Vee Belt:
A 23
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Base:
620
Maximum/ Minimum Distance Spindle Nose to Base:
925 to 230
Model:
40 R A A
Number of Autofeed:
0.05
Number of Spindle Speed:
80 to 1500
Overall Height of Machine:
2000 mm
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Spindle Feed By:
Hand and Auto Feed
Spindle Nose:
MT-4
Spindle Travel:
260
Working Area of Base:
870 x 760 mm
