Buy Satya Prakash Machine Tools 40 R A A 1250 - Radial Type Drilling Machine Online

Satya Prakash Machine Tools 40 R A A 1250 - 40 mm Radial Type Drilling Machine with All Geared Auto Feed, Fine Feed


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 40 R A A 1250 - 40 mm Radial Type Drilling Machine with All Geared Auto Feed, Fine Feed

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

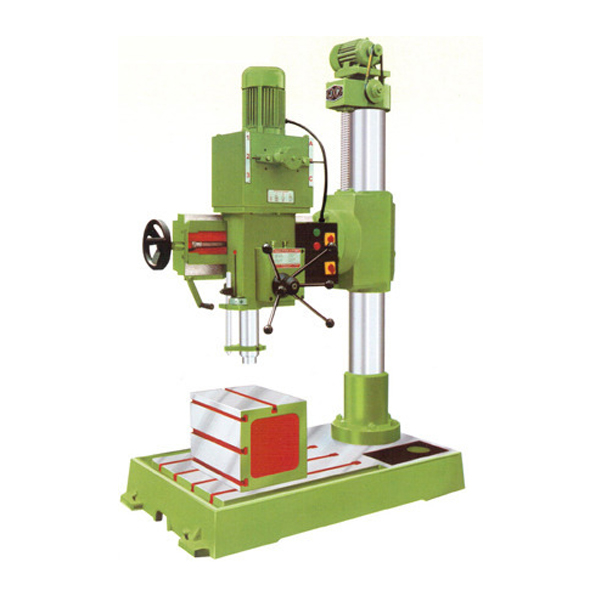

Satya Prakash Machine Tools’s Drilling Machines have radial type drills. Satya Prakash Machine Tools 40 R A A 1250 has 40 mm of capacity with all geared, auto-feed. Satya Prakash Machine Tools Radial Type Drilling Machine has an oil bath lifting gearbox with complete Ele. These power tools come with a molded coolant tank.

Product Attributes:

Column Diameter: 230
RAM Diameter: 78
Drill Head Motor: 2 HP, 960 RPM
Drilling Capacity in Mild Steel: 40
Lifting Motor: 1.5 HP, 1440 RPM
Max Distance Spindle Nose-Table: 940
Max. Distance Spindle Center-Column: 1250
Max. Min. Distance Spindle Nose-Base: 1350 to 275
Model: 40 RAA 1250
No. of Spindle Speeds: 80 to 1500
Number of Autofeed: 2, 0.04/0.08
Height: 2300
Base size: 1890X910x210
Box Table Size: 400x410x460
Spindle Feed By Auto feed, Fine Feed and Hand Operated
Spindle Nose: MT 4
Spindle Travel: 250
V Belt: B 27
Weight: 1800 Kg
Working Area of Base: 1340x910

Benefits:

Reliable
Durable
High efficiency

Product Specifications

GENERAL

Base Size:
1890X910x210 mm
Box Table Size:
400x410x460 mm
Brand:
Satya Prakash Machine Tools
Country of Origin:
India
Diameter of Column:
230
Diameter of Ram:
78
Drill Head Motor:
2 HP, 960 RPM
Drilling Capacity in Mild Steel:
40 mm
lifting Motor:
1.5 HP, 1440 RPM
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Center to Column:
1250 mm
Maximum Distance Spindle Nose to Table:
940 mm
Maximum/ Minimum Distance Spindle Nose to Base:
1350 to 275 mm
Model:
40 R A A 1250
Number of Auto Feed:
2, 0.04/0.08
Number of Spindle Speed:
80 to 1500, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Spindle Feed By:
Auto feed, Fine Feed and Hand Operated
Spindle Nose:
MT-4
Spindle Travel:
250
Total Height of Machine:
2300 mm
V Belt:
B 27
Weight:
1800 Kgs
Working Area of Base:
1340x910
