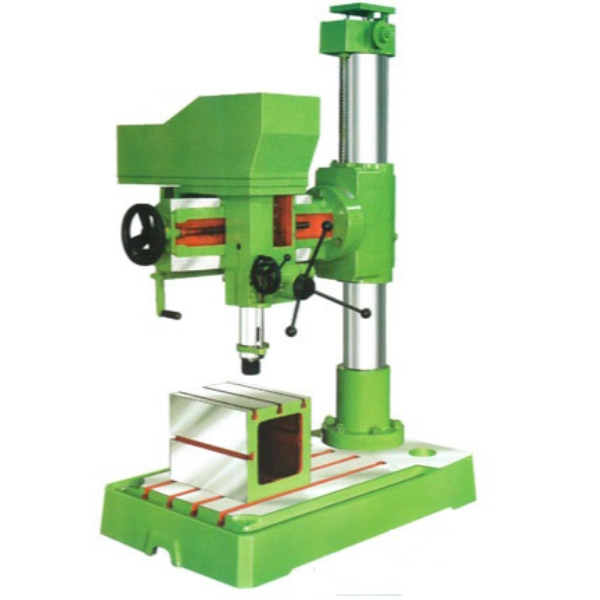

Satya Prakash Machine Tools 40 R A - 40 mm Radial Type Drilling Machine with Electric Motor and V Belt


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 40 R A - 40 mm Radial Type Drilling Machine with Electric Motor and V Belt

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Generally, drilling machines are used for drilling, reaming, counterboring, and tapping holes. A radial type drilling machine with an electric motor and V belt is a special kind of drill machine used for the specific purpose of drilling with accuracy, competence, and reliability in the factory's mass manufacturing of products. Satya Prakash Machine Tools 40 RA radial drilling machine relies on the best in the business and has reasonable pricing. The spindle feed mechanism is hand auto.

Product specification:

Brand Name: Satya Prakash Machine Tools

Model Name: 40RA

Number of spindle speed: 50 to 1735

No of speed settings: 8

Working area of the base: 870X 760

Drilling capacity in mild speed: 40 mm

Maximum/ Minimum Distance spindle Nose to the base: 925 to 230 mm

Product Specifications

GENERAL

Base Size:
760x1290x190 mm
Box Table Size:
305x305x380 mm
Brand:
Satya Prakash Machine Tools
Country of Origin:
India
Diameter of Column:
165
Diameter of Ram:
78
Drill Head Motor:
1.5 HP, 960 RPM
Drilling Capacity in Mild Steel:
40 mm
Elevating Motor:
0.5 HP, 1440 RPM
Lifting V Belt:
A 23
Lifting Vee Belt:
A 23
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Center to Column:
875x360 mm
Maximum Distance Spindle Nose to Table:
620 mm
Maximum/ Minimum Distance Spindle Nose to Base:
925 to 230 mm
Model:
40 R A
Number of Spindle Speed:
50 to 1735, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Spindle Feed By:
Hand Auto
Spindle Nose:
MT-4
Spindle Travel:
260
Tapping Capacity:
32
Total Height of Machine:
2000 mm
V Belt:
B-46
Weight:
900 Kgs
Working Area of Base:
870x760
