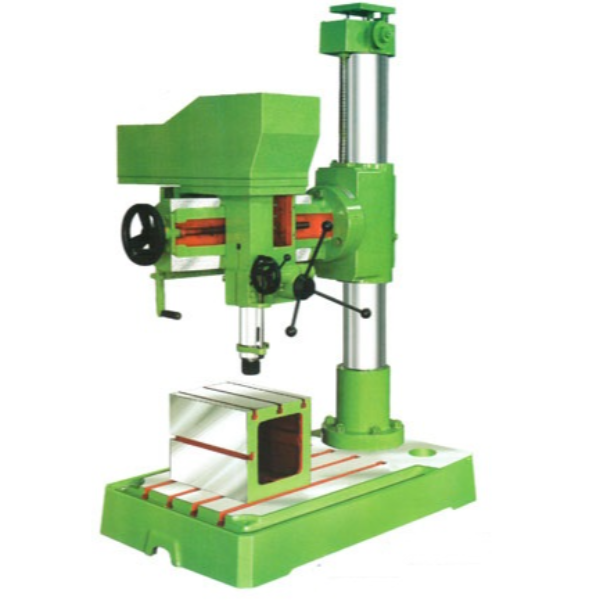

Satya Prakash Machine Tools 40 R A - 40 mm Radial Type Drilling machine with Box table, S.G.Iron Gears, Molded Coolant Tank and Oil bath Lifting Gear box with 450 mm Extra Long Pillar


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 40 R A - 40 mm Radial Type Drilling machine with Box table, S.G.Iron Gears, Molded Coolant Tank and Oil bath Lifting Gear box with 450 mm Extra Long Pillar

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Satya Prakash Machine Tools presents a radial type drilling machine with a drilling capacity of 40 mm. The drill machine has a moulded coolant tank and oil bath lifting gearbox with an extra-long pillar for a seamless experience of drilling into the objects for its users. The drill machine weighs 900 kg and guarantees customer satisfaction.

Product specification:

Brand Name: Satya Prakash Machine Tools

Model Name: 40R A

Number of spindle speed: 50 to 1735

No of Speed settings: 8

Working area of the base: 870X 760

Drilling capacity in mild steel: 40 mm

Maximum/ Minimum Distance spindle Nose to the base: 925 to 230

Lifting V belt of the machine: A-23

Product Specifications

GENERAL

Base Size:
760x1290x190 mm
Box Table Size:
305x305x380 mm
Brand:
Satya Prakash Machine Tools
Country of Origin:
India
Diameter of Column:
165
Diameter of Ram:
78
Drilling Capacity in Mild Steel:
40 mm
Extra Long Pillar:
450 mm
Lifting V Belt:
A 23
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Center to Column:
875x360 mm
Maximum Distance Spindle Nose to Table:
620 mm
Maximum/ Minimum Distance Spindle Nose to Base:
925 to 230 mm
Model:
40 R A
Number of Spindle Speed:
50 to 1735, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Spindle Feed By:
Hand Auto
Spindle Nose:
MT-4
Spindle Travel:
260
Tapping Capacity:
32
Total Height of Machine:
2000 mm
V Belt:
B 47
Weight:
900 Kgs
Working Area of Base:
870x760
