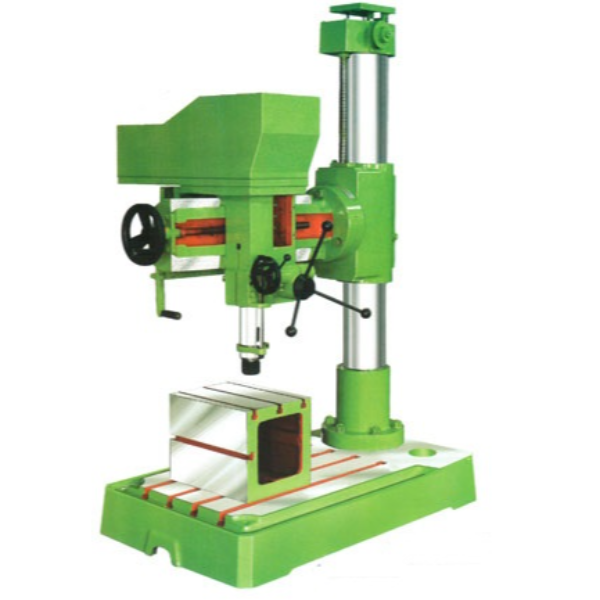

Satya Prakash Machine Tools 40 R - 40 mm Radial Type Drilling machine with Box table, S.G.Iron Gears, Molded Coolant Tank and Oil bath Lifting Gear box with 450 mm Extra Long Pillar


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 40 R - 40 mm Radial Type Drilling machine with Box table, S.G.Iron Gears, Molded Coolant Tank and Oil bath Lifting Gear box with 450 mm Extra Long Pillar

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Satya Prakash Machine Tools has brought to the users of radial type drilling machines the new drilling machine model with a moulded coolant tank and oil bath. A radial drill machine is a specific type of drill machine used for special purposes. It has a drilling head that is mounted to slide along the radial arm. With a base size of 760X 1290X 190 mm, pillar of size 450 mm, and a height of 2000 mm, the drilling machine is the best of the kind available in such a price range. It makes the task of drilling seamless and brings a finish to the product, which is why the company has a name for customer satisfaction.

Product specification:

Brand Name:Satya Prakash Machine Tools

Model Name: 40R

Number of spindle speed: 50 to 1735

No of Speed Settings: 8

Working area of the base: 870X 760

Drilling capacity in mild steel: 40 mm

Maximum/ Minimum Distance spindle Nose to the base: 925 to 230 mm

Product Specifications

GENERAL

Base Size:
760x1290x190 mm
Box Table Size:
305x305x380 mm
Brand:
Satya Prakash Machine Tools
Country of Origin:
India
Diameter of Column:
165
Diameter of Ram:
78
Drilling Capacity in Mild Steel:
40 mm
Extra Long Pillar:
450 mm
Lifting V Belt:
A 23
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Center to Column:
875x360 mm
Maximum Distance Spindle Nose to Table:
620 mm
Maximum/ Minimum Distance Spindle Nose to Base:
925 to 230 mm
Model:
40 R
Number of Spindle Speed:
50 to 1735, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Spindle Feed By:
Hand Star Lever and Worm
Spindle Nose:
MT-4
Spindle Travel:
260
Tapping Capacity:
32
Total Height of Machine:
2000 mm
V Belt:
B 47
Weight:
900 Kgs
Working Area of Base:
870x760
