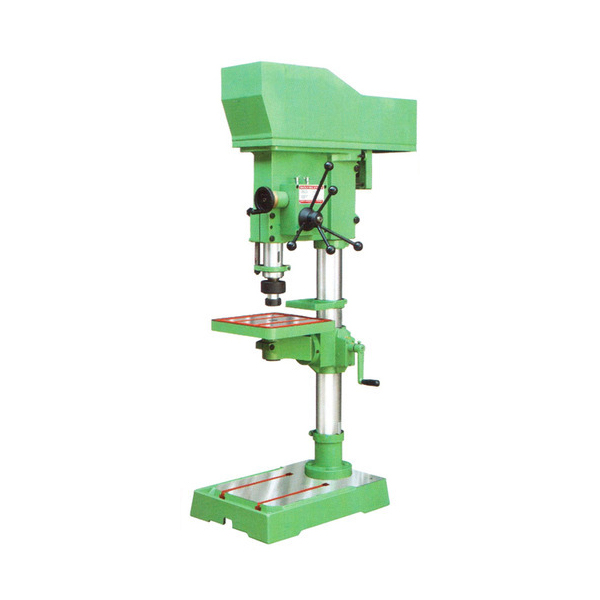

Satya Prakash Machine Tools 40 P - 40 mm Pillar Type Drilling Machine without Electric Motor

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

If you need sturdy motors, and vertically and precisely aligned holes, the Satya Prakash Machine Tools 40 P does a superb job. This drill has a drill capacity of 40 mm in mild steel. The drilling machine has a spindle centre to column height of 316 mm and the maximum travel of spindle at 250 mm. The maximum distance between spindle nose to base is 1065 mm and the spindle nose to table is 685 mm. The spindle nose bore fitting is an M.T. 4 and the vee belt is a C 70 in the Satya Prakash Machine Tools 40 P. The base area machined in this drill is 450 mm x 600 mm. The diameters of the column, table and ram are 130mm, 545 mm, and 90mm respectively. The tapping capacity is 35.

Features:

  • 2 Hp motor
  • 1440 rpm
  • 1814mm total height
  • 8 spindle speeds from 80 to 1975

Benefits:

  • Extremely powerful
  • Precise drilling
  • Sturdy
Product Specifications

GENERAL

Base are Machined:
450x600
Brand:
Satya Prakash Machine Tools
Capacity in Mild Steel:
40 mm
Country of Origin:
India
Diameter of Column:
130
Diameter of Ram:
90
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Table:
1065 mm
Maximum Travel of Spindle:
250
Model:
40 P
Number of Spindle Speed:
80 to 1975, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Speed:
1440 RPM
Spindle Centre to Column:
316 mm
Spindle Nose:
MT-4
Table Diameter:
545 mm
Tapping Capacity:
35
Total Height of the Machine:
1814 mm
Weight:
550 Kgs
