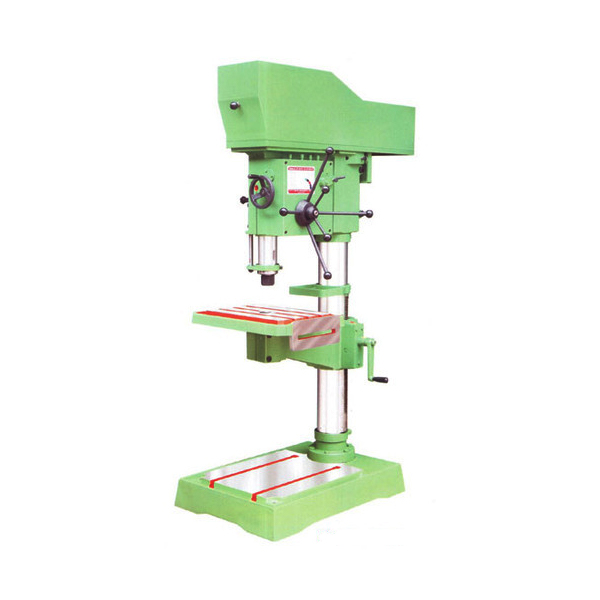

Satya Prakash Machine Tools 40 P A - 40 mm Pillar Type Drilling Machine with 3 Speed Auto Feed, Fine Feed and without Electric Motor


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 40 P A - 40 mm Pillar Type Drilling Machine with 3 Speed Auto Feed, Fine Feed and without Electric Motor

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

For heavy-duty motor buy Satya Prakash Machine Tools 40 P.A. with an option of auto-feed, fine feed, panel boards and steel gears. Its drilling capacity is 40mm (mild steel), with 3-speed auto-feed at .05, .10 and .15. The spindle centre to column length is 385mm. This pillar-type drilling machine has the maximum travel of spindle at 250mm. The maximum distance between spindle nose to table and spindle nose to base are 685mm and 1117mm respectively. The diameters of the ram and column in the drill are 90mm and 150mm respectively. The base area machined is 700mm x 977mm. The spindle nose bore fitting in Satya Prakash Machine Tools 40 P.A. is an MT- 4 and there are two B 80 vee belts.

Features:

  • 3 Hp motor
  • 960 rpm
  • 6 spindle speed from 50 to 1225
  • 2130 mm height
  • Table size 450 mm x 610 mm

Benefits:

  • Heavy-duty motor
  • Auto-feed
  • Efficient tool
Product Specifications

GENERAL

Base are Machined:
700x977
Brand:
Satya Prakash Machine Tools
Capacity in Mild Steel:
40 mm
Country of Origin:
India
Diameter of Column:
150
Diameter of Ram:
90
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Table:
1117 mm
Maximum Travel of Spindle:
250
Model:
40 P A
Number of Spindle Speed:
50 to 1225, 6
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Speed:
960 RPM
Spindle Centre to Column:
385 mm
Spindle Nose:
MT-4
Table Diameter:
45x610 mm
Total Height of the Machine:
2130 mm
Weight:
700 Kgs
