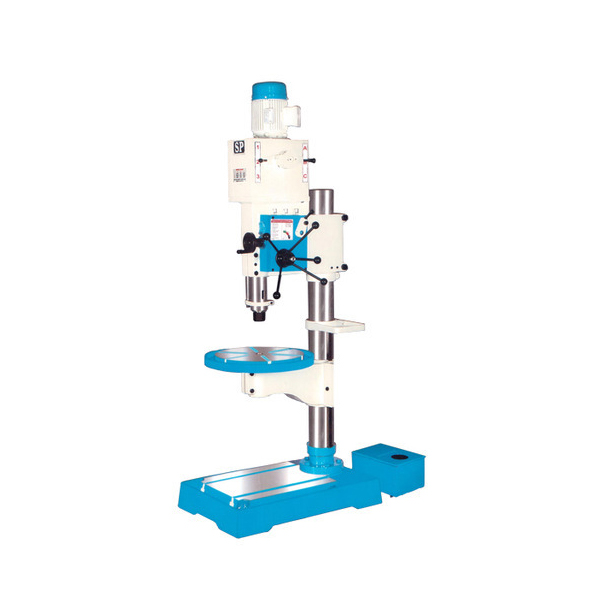

Buy Satya Prakash Machine Tools 40 P A A - Pillar Type Drilling Machine Online

Satya Prakash Machine Tools 40 P A A - Pillar Type Drilling Machine with All Geared 2 Auto Feed, Fine Feed and Fully Oil Bath Gear box


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 40 P A A - Pillar Type Drilling Machine with All Geared 2 Auto Feed, Fine Feed and Fully Oil Bath Gear box

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Satya Prakash Machine Tools 40 P A A- Pillar Type Drilling Machine is powered by a 1.5 Hp motor that renders a no-load speed of 960 rpm. This pillar type drilling machine can drill up to 40 mm into mild steel. It has a tapping capacity of 16 mm. There are 9 spindle speed setting ranging from 95 to 1500. With a column diameter of 130 mm and Ram diameter of 78 mm, it has a spindle centre to column height of 705 mm. This drilling machine comes with 2 auto feeds and fully oil bath gearbox. Satya Prakash Machine Tools 40 P A A - Pillar Type Drilling Machine has an MT- 4 type spindle nose and the distance between spindle nose to table is 1150 mm.

Features:

  • 1.5 Hp motor
  • 40 mm drilling capacity
  • M.T. – 4 spindle-nose bore fitting
  • Spindle-nose to base length of 1150 mm
  • 960 rpm speed without load
  • 2 auto feeds
  • Fine Feed
  • Fully oil bath gearbox

Benefits:

  • Efficient
  • Powerful
  • Stand-alone operation
  • Low maintenance
  • Durable
Product Specifications

GENERAL

Base are Machined:
450x600
Brand:
Satya Prakash Machine Tools
Capacity in Mild Steel:
40 mm
Country of Origin:
India
Diameter of Column:
130
Diameter of Ram:
78
HP of the Motor:
1.5 HP
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Table:
1150 mm
Maximum Travel of Spindle:
250
Model:
40 P A A
Number of Auto Feed:
2
Number of Spindle Speed:
95 to 1500, 9
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Speed:
960 RPM
Spindle Centre to Column:
316 mm
Spindle Nose:
MT-4
Table Size:
545 mm
Weight:
550 Kgs
