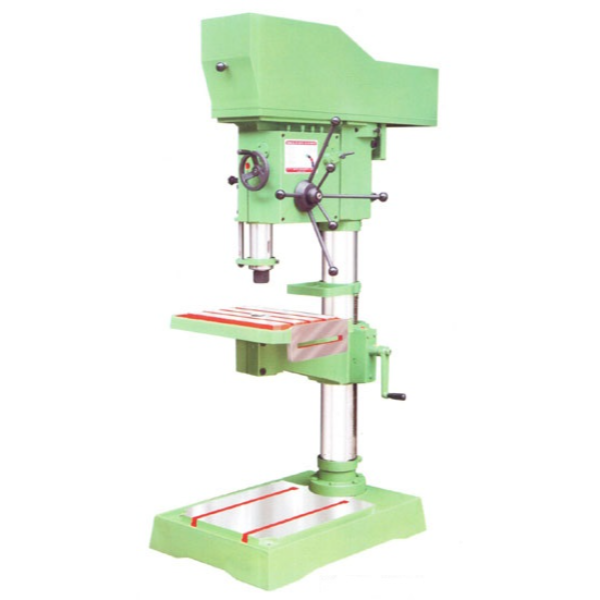

Satya Prakash Machine Tools 40 P A - 40 mm Pillar Type Drilling Machine with Electric Motor and V Belt


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 40 P A - 40 mm Pillar Type Drilling Machine with Electric Motor and V Belt

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Pillar type drilling finds its use in drilling multiple holes in succession with the exact same depth and dimensions. Pillar drilling machines are used for its accuracy. A pillar drill is relied upon for a neat job. Satya Prakash Machine Tools 40 P A lets the user drill depth down to the millimetre. The machine's accuracy and the tool's ability to withstand a heavy workload make it an ideal product to use in industry (either small or large scale) and even in laboratories (because of precision).

Product specification:

Brand Name: Satya Prakash Machine Tools

Model Name: 40 P A

Number of spindle speed: 50 to 1225, 6

Machine Speed: 960 RPM

Drilling capacity in mild steel: 40 mm

Maximum Distance spindle Nose to the base:1117 mm

Product Specifications

GENERAL

Base are Machined:
700x977
Brand:
Satya Prakash Machine Tools
Capacity in Mild Steel:
40 mm
Country of Origin:
India
Diameter of Column:
150
Diameter of Ram:
90
HP of the Motor:
3 HP
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Table:
1117 mm
Maximum Travel of Spindle:
250
Model:
40 P A
Number of Spindle Speed:
50 to 1225, 6
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Speed:
960 RPM
Spindle Centre to Column:
385 mm
Spindle Nose:
MT-4
Table Diameter:
45x610 mm
Total Height of the Machine:
2130 mm
V Belt:
B.80 2, Nos
Weight:
700 Kgs
