Buy Satya Prakash Machine Tools 38 P - Pillar Type Drilling Machine Online

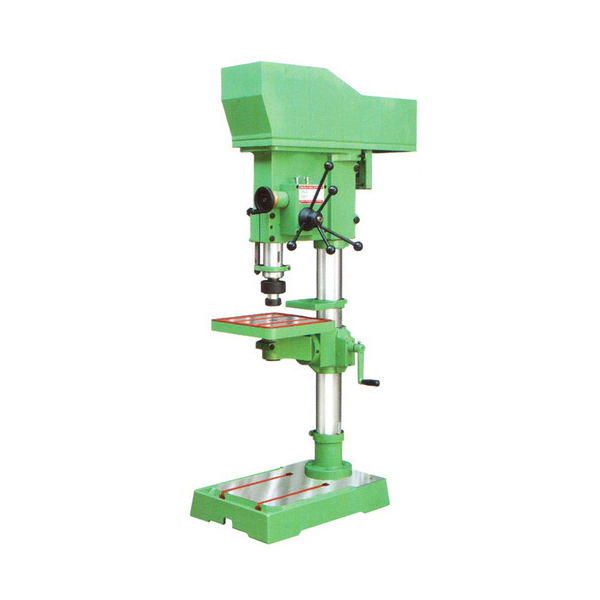

Satya Prakash Machine Tools 38 P - 38 mm Pillar Type Drilling Machine without Electric Motor


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 38 P - 38 mm Pillar Type Drilling Machine without Electric Motor

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Pillar-type drilling machines are very precise and sturdier than hand-held drilling tools. The Satya Prakash Machine Tools 38 P has a drilling capacity of 38 mm in mild steel. The base area machined of this drill is 360 mm x 400 mm. While the diameter of the column in this pillar-type drilling machine is 120 mm, the diameter of the ram is 78 mm. Satya Prakash Machine Tools 38 P has a 2Hp motor with maximum spindle travel at 250mm. The maximum distance from spindle nose to table is 1010mm. The spindle centre to column height is 321mm. This drill uses an MT - 4 spindle nose and a B 64 vee belt. The tapping capacity of the tool is 32 mm while the size of the table is 450 mm x 450 mm.

Features:

  • 2 Hp motor
  • Total height at 1870
  • 8 spindle speeds from 50 to 1735
  • 960 rpm no-load speed

Benefits:

  • Precise drilling
  • Sturdy
  • Efficient
Product Specifications

GENERAL

Base are Machined:
400x400
Brand:
Satya Prakash Machine Tools
Capacity in Mild Steel:
38 mm
Country of Origin:
India
Diameter of Column:
120
Diameter of Ram:
78
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Table:
1010 mm
Maximum Travel of Spindle:
250
Model:
38 P
Number of Spindle Speeds:
80 to 1975, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Speed:
960 RPM
Spindle Centre to Column:
321 mm
Spindle Nose:
MT-4
Table Size:
450x450 mm
Tapping Capacity:
32
Total Height of the Machine:
1870 mm
Weight:
385 Kgs
