Buy Satya Prakash Machine Tools 38 P A - Pillar Type Drilling Machine Online

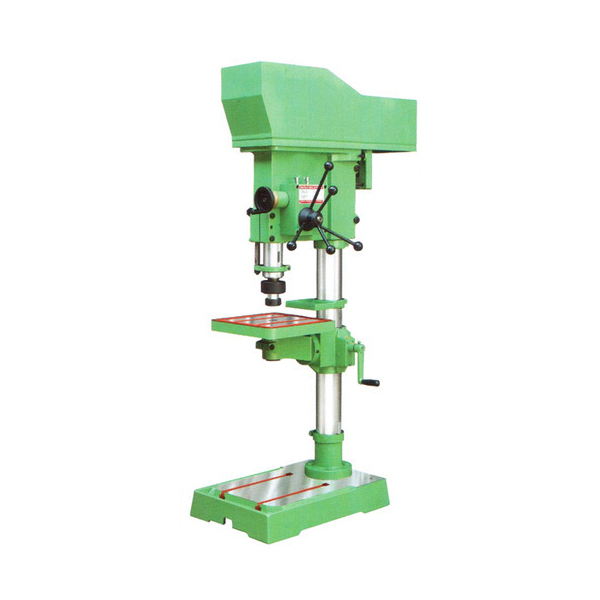

Satya Prakash Machine Tools 38 P A - 38 mm Pillar Type Drilling Machine with Auto Feed, Fine Feed and without Electric Motor


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 38 P A - 38 mm Pillar Type Drilling Machine with Auto Feed, Fine Feed and without Electric Motor

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Satya Prakash Machine Tools 38 P.A. has the option of auto-feed, fine feed, panel boards and steel gears. This drill has the drilling capacity of 38 mm in mild steel, while the auto-feed quantity is .05mm. The spindle centre to column length is 260 mm. This pillar-type drilling machine has the maximum travel of spindle at 250 mm. The maximum distance between spindle nose to table and spindle nose to base are 740mm and 1050mm respectively. The diameters of the table, ram and column in the Satya Prakash Machine Tools 38 P.A. are 385mm, 78mm, and 108mm respectively. The base area machined is 350mm x 390mm. The spindle nose bore fitting in this drill is M.T. 4 and the vee belt is B 55.

Features:

  • 1.5 Hp motor
  • 1440 rpm
  • 8 spindle speed from 80 to 2600
  • 1778 mm height
  • Table size of 385mm2

Benefits:

  • Auto-feed
  • Precise
  • Efficient tool
Product Specifications

GENERAL

Base are Machined:
350x390
Brand:
Satya Prakash Machine Tools
Capacity in Mild Steel:
38 mm
Country of Origin:
India
Diameter of Column:
108
Diameter of Ram:
78
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Table:
1050 mm
Maximum Travel of Spindle:
250
Model:
38 P A
Number of Spindle Speed:
80 to 2600, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Speed:
1440 RPM
Spindle Centre to Column:
260 mm
Spindle Nose:
MT-4
Table Diameter:
385x385 mm
Total Height of the Machine:
1778 mm
Weight:
350 Kgs
