Buy Satya Prakash Machine Tools 38 A M D - Pillar Type Drilling Machine Online

Satya Prakash Machine Tools 38 A M D - 38 mm Pillar Type Drilling Machine with Auto Feed, Fine Feed and without Electric Motor


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 38 A M D - 38 mm Pillar Type Drilling Machine with Auto Feed, Fine Feed and without Electric Motor

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

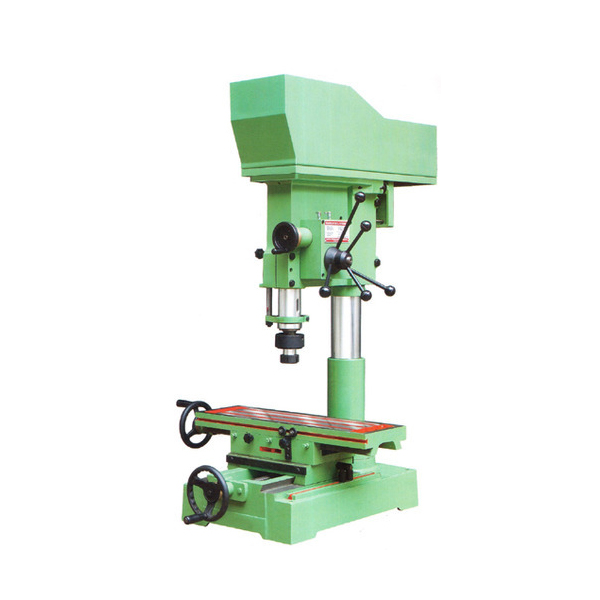

The Satya Prakash Machine Tools 38 AMD is a milling-cum-drilling machine. This pillar-type drilling machine has auto-feed, fine feed, and head lifting gearbox. The drilling capacity of the tool in mild steel is 38mm. The auto-feed number is .05. The spindle centre to column length in this drill is 260mm, while the maximum travel of spindle is 250mm. The maximum distance of spindle nose to table is 500mm. The table size is 228mm x 765mm. The diameter of the column is 108mm and ram is 78 mm. The spindle nose bore fitting is M.T.4 and the vee belt is B 56. The endmill cap is 20 mm in this pillar-type drilling machine.

Features:

  • 1.5 Hp motor
  • 1440 rpm
  • 1600 mm height
  • 45 deg left/right swing
  • 8-speed spindle from 80 to 2600
  • Base area machined is 475 mm x 700 mm

Benefits:

  • Milling and drilling
  • Auto-feed option
  • Powerful motor
  • Precise operation
  • Ease of use
Product Specifications

GENERAL

Base are Machined:
475x700
Brand:
Satya Prakash Machine Tools
Capacity in Mild Steel:
38 mm
Country of Origin:
India
Diameter of Column:
108
Diameter of Ram:
78
End Mill Cap:
20
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Table:
500 mm
Maximum Travel of Spindle:
250
Model:
38 AMD
Number of Spindle Speed:
80 to 2600, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Speed:
1440 RPM
Spindle Centre to Column:
260 mm
Spindle Nose:
MT-4
Swing:
45 Deg L/R
Table Diameter:
228x765 mm
Total Height of the Machine:
1600 mm
Weight:
500 Kgs
