Buy Satya Prakash Machine Tools 32 P - Pillar Type Drilling Machine Online

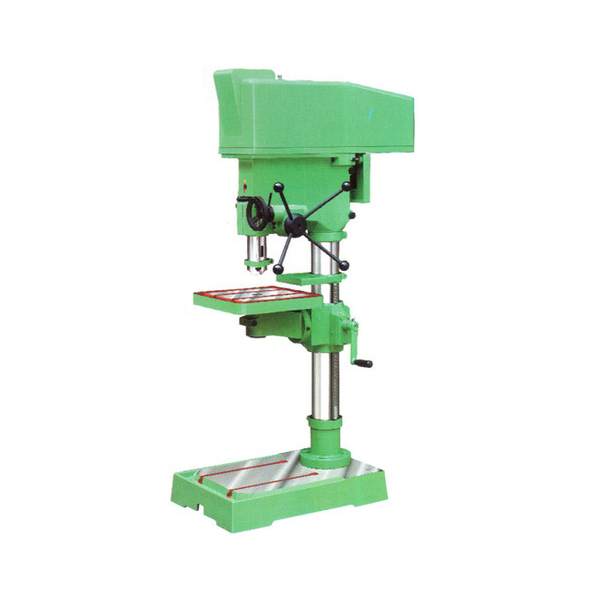

Satya Prakash Machine Tools 32 P - 32 mm Pillar Type Drilling Machine without Electric Motor


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 32 P - 32 mm Pillar Type Drilling Machine without Electric Motor

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Satya Prakash Machine Tools 32 P is a pillar-type drilling machine that has a power of 1.5 Hp. The no-load speed of this tool is 1440 rpm. There are 8 spindle speed settings starting from 80 to 2600. The spindle centre to column height is 260 mm, the diameter of the table is 385 mm and that of the ram is 72 mm. The drilling capacity of this pillar-type drilling machine is 32 mm in mild steel. The maximum travel of the spindle is 160mm and the maximum distance between spindle-nose to table is 810mm. The diameter of the column is 108mm. The Satya Prakash Machine Tools 32 P has a B 55 Vee belt.

Features:

  • 1.5 Hp power motor
  • 32 mm drilling capacity
  • 1778 mm total height
  • M.T. – 3 spindle-nose bore fitting
  • Spindle-nose to base length of 1120mm
  • Base area machined is 350 mm x 390 mm

Benefits:

  • Efficient
  • Sturdy
  • Powerful
Product Specifications

GENERAL

Base are Machined:
400x400
Brand:
Satya Prakash Machine Tools
Capacity in Mild Steel:
32 mm
Country of Origin:
India
Diameter of Column:
108
Diameter of Ram:
72
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Table:
1120 mm
Maximum Travel of Spindle:
160
Model:
32 P
Number of Spindle Speeds:
80 to 2600, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Speed:
1440 RPM
Spindle Centre to Column:
260 mm
Spindle Nose:
MT-3
Table Size:
345x385 mm
Tapping Capacity:
25
Total Height of the Machine:
1778 mm
Weight:
300 Kgs
