Buy Satya Prakash Machine Tools 25 R - Radial Type Drilling Machine Online

Satya Prakash Machine Tools 25 R - 25 mm Radial Type Drilling Machine without Electric Motor


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 25 R - 25 mm Radial Type Drilling Machine without Electric Motor

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

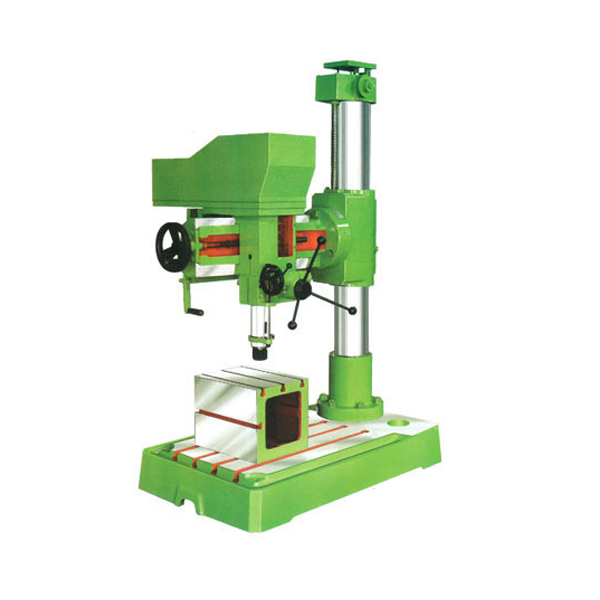

Satya Prakash Machine Tools 25 R is one of the radial type drilling machines that has its drilling head mounted to slide along a radial arm that can be raised, lowered and rotated on a vertical mast for adjusting the drill’s position. These power tools have 25 mm of capacity. Satya Prakash Machine Tools Radial Type Drilling Machine can work without an electric motor.

Product Attributes:

Column Diameter: 127
RAM Diameter: 72
Drill Head Motor: 1 HP, 1440 RPM
Drilling Capacity in Mild Steel: 25
Lifting Motor: 0.5 HP, 1440 RPM
Lifting V Belt: A 20
Max Distance Spindle Nose to Table: 570
Max. Distance Spindle Center to Column: 665x270
Max. Min. Distance Spindle Nose to Base: 750 to 175
No. of Spindle Speeds: 90 to 2600, 8
Height: 1420
Size of Base: 600x1000x150
Size of Box Table: 205x205x285
Spindle Nose: MT 3
Spindle Travel: 225
Tapping Capacity: 20
V Belt: B 40
Weight: 485 Kg
Working Area of Base: 725x600
Spindle Feed By Hand Star Lever and Worm

Benefits:

High efficiency
Durable
Reliable

Product Specifications

GENERAL

Base Size:
600x1000x150 mm
Box Table Size:
205x205x285 mm
Brand:
Satya Prakash Machine Tools
Country of Origin:
India
Diameter of Column:
127
Diameter of Ram:
72
Drilling Capacity in Mild Steel:
25 mm
Lifting V Belt:
A 20
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Center to Column:
665x270 mm
Maximum Distance Spindle Nose to Table:
570 mm
Maximum/ Minimum Distance Spindle Nose to Base:
750 to 175 mm
Model:
25 R
Number of Spindle Speed:
90 to 2600, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Spindle Feed By:
Hand Star Lever and Worm
Spindle Nose:
MT-3
Spindle Travel:
225
Tapping Capacity:
20
Total Height of Machine:
1420 mm
V Belt:
B 40
Weight:
485 Kgs
Working Area of Base:
725x600
