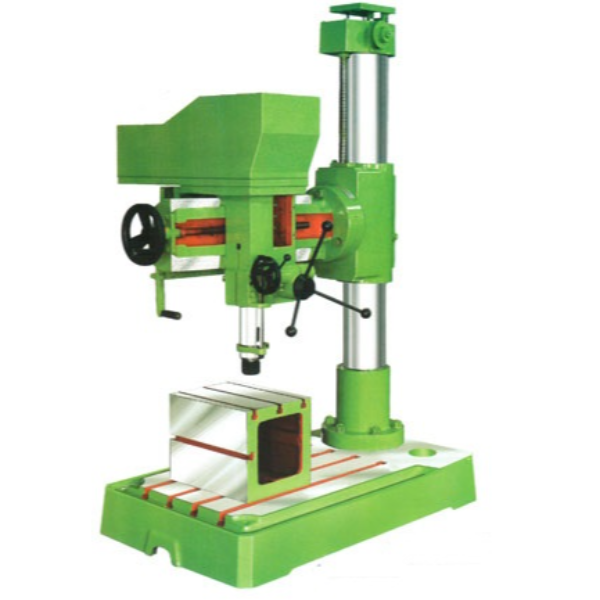

Satya Prakash Machine Tools 25 R - 25 mm Radial Type Drilling Machine with Electric Motor and V Belt


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 25 R - 25 mm Radial Type Drilling Machine with Electric Motor and V Belt

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The professionals use the 485 kg, V-belt radial type drilling machine for its portability and accuracy. The drill machine has a compact size with an elevating motor of 0.5 HP, 1440 RPM. Satya Prakash Machine Tools has attempted to improve the model by making the design of the machine sleek. This makes the machine more user friendly.

Product specification:

Brand Name: Satya Prakash Machine Tools

Model Name: 25 R

Number of spindle speed: 90 to 2600

No of Speed settings: 8

Working area of the base: 725x 600

Drilling capacity in mild steel: 25 mm

Maximum/ Minimum Distance spindle Nose to the base: 750 to 175 mm

Product Specifications

GENERAL

Base Size:
600x1000x150 mm
Box Table Size:
205x205x285 mm
Brand:
Satya Prakash Machine Tools
Country of Origin:
India
Diameter of Column:
127
Diameter of Ram:
72
Drill Head Motor:
1 HP, 1440 RPM
Drilling Capacity in Mild Steel:
25 mm
Elevating Motor:
0.5 HP, 1440 RPM
Lifting V Belt:
A 20
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Center to Column:
665x270 mm
Maximum Distance Spindle Nose to Table:
570 mm
Maximum/ Minimum Distance Spindle Nose to Base:
750 to 175 mm
Model:
25 R
Number of Spindle Speed:
90 to 2600, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Spindle Feed By:
Hand Star Lever and Worm
Spindle Nose:
MT-3
Spindle Travel:
225
Tapping Capacity:
20
Total Height of Machine:
1420 mm
V Belt:
B-40
Weight:
485 Kgs
Working Area of Base:
725x600
