Buy Satya Prakash Machine Tools 25 P - Pillar Type Drilling Machine Online

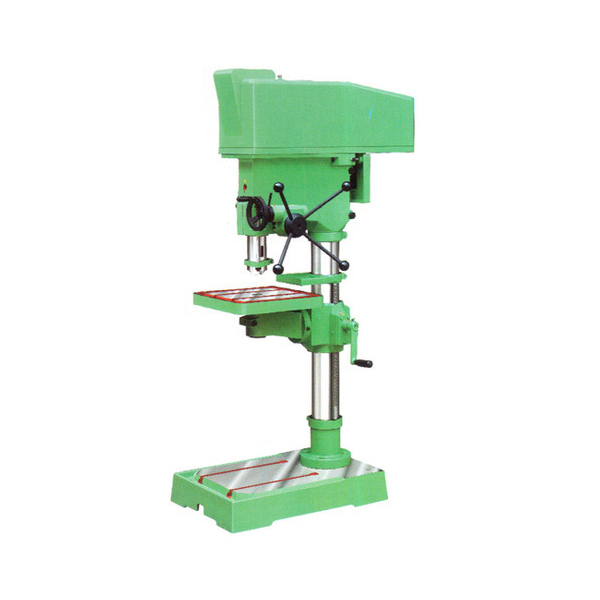

Satya Prakash Machine Tools 25 P - 25 mm Pillar Type Drilling Machine without Electric Motor


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 25 P - 25 mm Pillar Type Drilling Machine without Electric Motor

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Among pillar-type drilling machines, the Satya Prakash Machine Tools 25 P is a good buy. The drill requires 1 HP power and has a no-load speed of 1440 rpm. This drilling machine has a drilling capacity of 25 mm in mild steel and 8 spindle speed settings starting from 104 to 2651. The diameter of the column is 90 mm while that of the ram is 72 mm. The maximum travel length of the spindle is 150mm and the maximum distance between spindle nose to table is 710 mm. The spindle centre to column height is 260 mm. The tapping capacity of the drill is 20 mm. The Vee Belt of the Satya Prakash Machine Tools 25 P is B 46.

Features:

  • 1 Hp motor
  • 25 mm drilling capacity
  • M.T. – 3 spindle-nose bore fitting
  • 336 mm x 336 mm table dimension
  • Spindle-nose to base length of 950 mm

Benefits:

  • Efficient
  • Powerful
  • Stand-alone operation
Product Specifications

GENERAL

Base are Machined:
295x380
Brand:
Satya Prakash Machine Tools
Capacity in Mild Steel:
25 mm
Country of Origin:
India
Diameter of Column:
90
Diameter of Ram:
72
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Table:
950 mm
Maximum Travel of Spindle:
150
Model:
25 P
Number of Spindle Speeds:
104 to 2651, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Speed:
1440 RPM
Spindle Centre to Column:
206 mm
Spindle Nose:
MT-3
Table Size:
345x345 mm
Tapping Capacity:
20
Total Height of the Machine:
1606 mm
Weight:
190 Kgs
