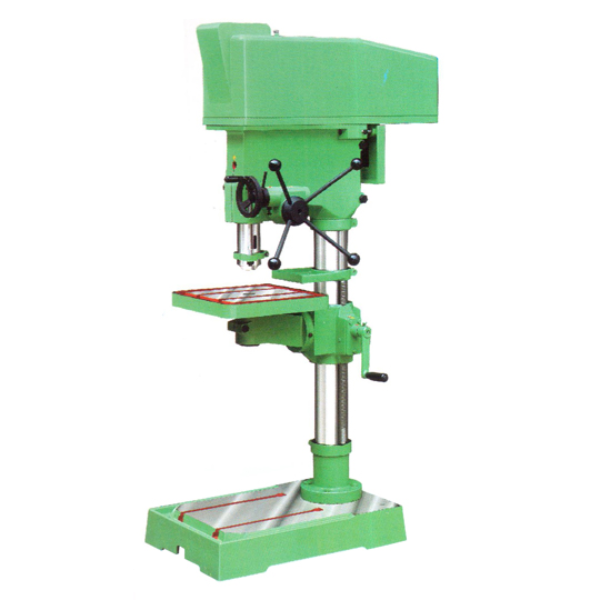

Satya Prakash Machine Tools 25 P - 25 mm Pillar Type Drilling Machine with Electric Motor. R/F switch and V Belt, Coolant Pump and Tank


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 25 P - 25 mm Pillar Type Drilling Machine with Electric Motor. R/F switch and V Belt, Coolant Pump and Tank

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Used by carpenters, MM and NN pillar type drilling machines are well known for the stability and accuracy it provides to the task. Pillar type drill machines are used to drill holes in materials one can carry to the tool. Satya Prakash Machine Tools 25 P Pillar type drilling machine has additional R/F switch and coolant pump features that protect the machine from any kind of damage when at work.

Product specification:

Brand Name: Satya Prakash Machine Tools

Model Name: 25P

Number of spindle speed: 104 to 2651

No of speed settings: 8

Tapping capacity of the machine: 20

Drilling capacity in mild steel: 25 mm

Maximum/ Minimum Distance spindle Nose to the base: 950 mm

Product Specifications

GENERAL

Base are Machined:
295x380
Brand:
Satya Prakash Machine Tools
Capacity in Mild Steel:
25 mm
Country of Origin:
India
Diameter of Column:
90
Diameter of Ram:
72
HP of the Motor:
1 HP
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Table:
950 mm
Maximum Travel of Spindle:
150
Model:
25 P
Number of Spindle Speeds:
104 to 2651, 8
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Speed:
1440 RPM
Spindle Centre to Column:
206 mm
Spindle Nose:
MT-3
Table Size:
345x345 mm
Tapping Capacity:
20
Total Height of the Machine:
1606 mm
V Belt:
B 46
Weight:
190 Kgs
