Buy Satya Prakash Machine Tools 20 P - Pillar Type Drilling Machine Online

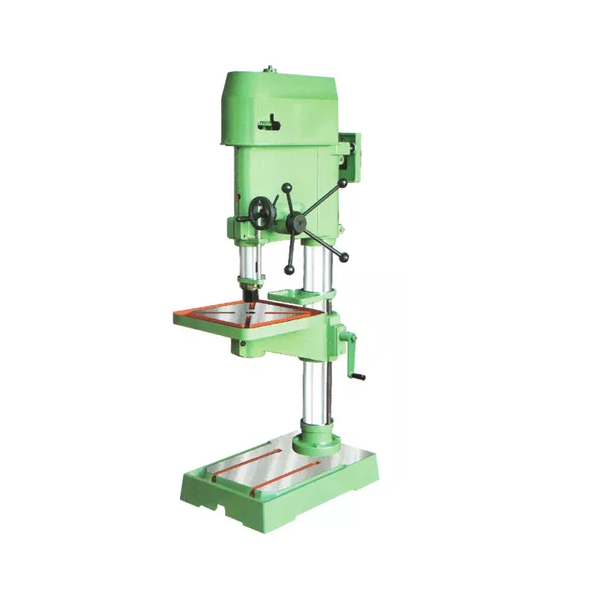

Satya Prakash Machine Tools 20 P - 20 mm Pillar Type Drilling Machine without Electric Motor


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Satya Prakash Machine Tools 20 P - 20 mm Pillar Type Drilling Machine without Electric Motor

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Satya Prakash Machine Tools 20 P - Pillar Type Drilling Machine is powered by a 1 Hp motor that renders a no-load speed of 1440 rpm. This pillar type drilling machine can drill up to 20 mm into mild steel. It has a tapping capacity of 16 mm. There are 8 spindle speed setting ranging from 90 to 3000. With a column diameter of 74.20 mm and Ram diameter of 55 mm, it has a spindle centre to column height of 204 mm. This drilling machine uses an 842 Vee belt to operate. Satya Prakash Machine Tools 20 P - Pillar Type Drilling Machine has an MT-2 type spindle nose and the distance between spindle nose to table is 910 mm.

Features:

  • 1 Hp motor
  • 20 mm drilling capacity
  • M.T. – 2 spindle-nose bore fitting
  • 260 mm x 260 mm table dimension
  • Spindle-nose to base length of 910 mm
  • 1440 rpm speed without load

Benefits:

  • Efficient
  • Powerful
  • Stand-alone operation
  • Low maintenance
Product Specifications

GENERAL

Base are Machined:
290x235
Brand:
Satya Prakash Machine Tools
Capacity in Mild Steel:
20 mm
Country of Origin:
India
Diameter of Column:
74.20
Diameter of Ram:
55
Manufacturer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Maximum Distance Spindle Nose to Table:
910 mm
Maximum Travel of Spindle:
130
Model:
20 P
Number of Spindle Speeds:
90 to 3000
Packer Details:
Satya Prakash Machine Tools ,Shed No 3, Vithalwadi Main Rd, opposite IOC Petrol Pump, Vithalwadi, Bhavnagar, Gujarat 364001
Speed:
1440 RPM
Spindle Centre to Column:
204 mm
Spindle Nose:
MT-2
Table Size:
260x280 mm
Tapping Capacity:
16
Total Height of the Machine:
1530 mm
Weight:
110 Kgs
