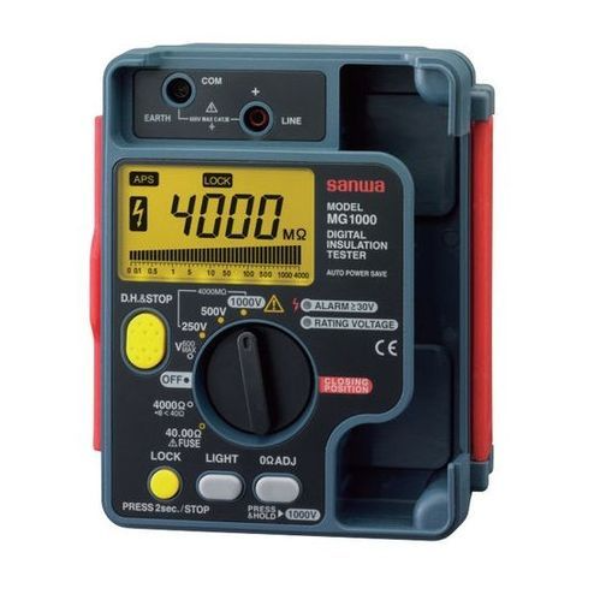

The Sanwa - 1000 V Digital Insulation Tester has a large display with a backlight with Bar Graph. This 1000 V Digital Insulation Tester has a tough body with an IP54 rating. This Digital Insulation Tester has an automatic data hold function, a Hot-line state of minimum 30V detection, and an auto discharge function. This Insulation Tester is easy to use. The Sanwa - 1000 V Digital Insulation Tester has a sampling rate of 2 times per second.
The Product Specifications:
Manufactured by: Sanwa
Country of Origin: Japan
Dimensions: 17x14.2x5.7 cm
Model: MG1000
Item Weight: 600 grams
Safety: CAT III 600 V
Minimum Test Voltage: 250V
Maximum Test Voltage: 1000V
Maximum Insulation Resistance Measurement: 4000MΩ
Display Type: LCD
Test Current: 1 → 1.2mA
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: +40°C
Key Features:
It has a tough body with an IP54 rating.
Has an automatic data hold function
Has a Hot-line state of minimum 30V detection
It has an auto discharge function.
It is easy to use. CE marked
