Description

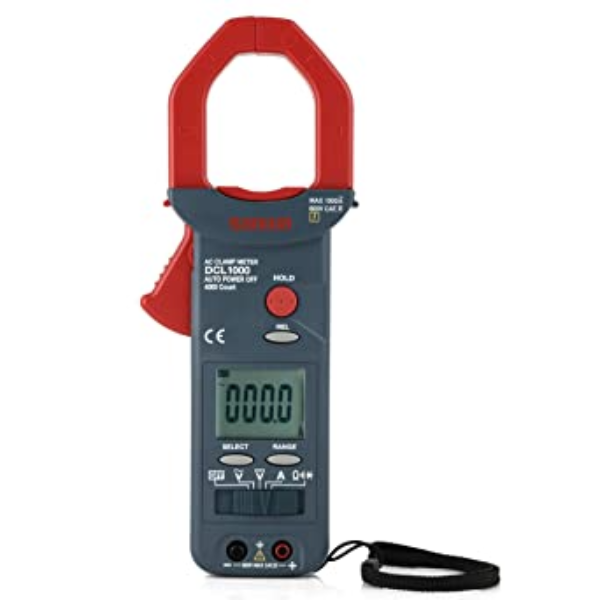

The Sanwa - 1000A AC Digital Clamp Meter combines a standard digital multimeter with a current sensor. The Clamps and Probes both measure current and voltage. 1000A AC Digital Clamp Meter measure non-contact AC current using the concept of magnetic induction. A magnetic field in the Clamp Meter is created by an electric current passing through a wire. The magnetic fluctuations are sensed by a current converter located within the Digital Clamp Meter, which transforms the value to an AC current measurement. The Sanwa – 1000A AC Digital Clamp Meter comes with a 4000 count display. The Clamp Meter is designed to meet IEC61010 CAT III 600V Safety Standard and has a CE marking.

Product Specifications:

Manufactured by: Sanwa

Country of Origin: Japan

Model: DCL1000

Product: AC Digital Clamp Meter

Maximum AC Current: 1000A

Jaw Size: 42mm / 20 x 54 mm

Key Features:

Durable

Reliable measurements

Wrist strap

Product Specifications

GENERAL

AC Current Sensing Range:
1000 A
Bandwidth:
ACA 50/60 Hz, AC V 50-500 Hz Sine Wave
Battery:
R03x2
Brand:
Sanwa
Clamp Diameter:
42 mm/20x54 mm
Country of Origin:
Tokyo Japan
DC voltage:
600 V
Digit Display:
4000 Counts
Dimensions:
238x95x45 mm
Model:
DCL1000
Resistance:
400/4/40/400 K/4/40MOhm
Storage Humidity:
Max 70 percentage RH
Storage Temperature:
20-60 degree C
