Buy Power X ARC 400 IGBT 3PH MOSFET - 20 to 400 A Inverter Welding System Online

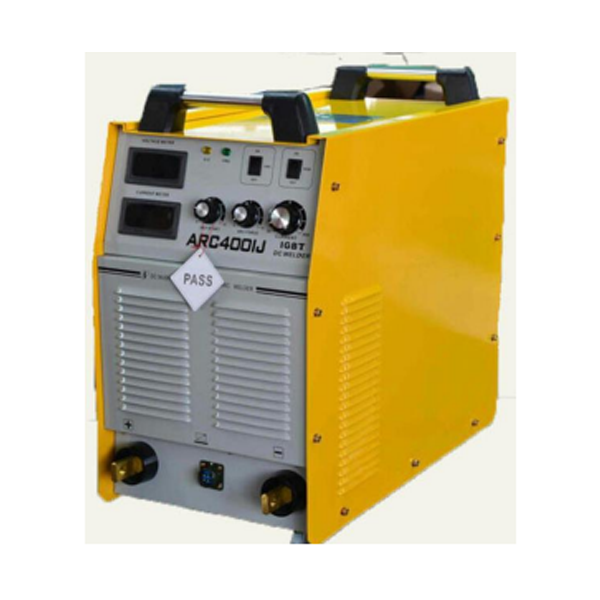

Power X ARC 400 IGBT 3PH MOSFET - 20 to 400 A Inverter Welding System


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Power X ARC 400 IGBT 3PH MOSFET - 20 to 400 A Inverter Welding System

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Power 20 to 400A Inverter Welding System is manufactured with advanced modular IGBT Technology. The 20 to 400A Inverter Welding System ensures stable and reliable performance. For added convenience, optional remote control can be used to operate the device from anywhere. Moreover, the Inverter Welding System auto-adjusts to voltage fluctuations, enabling it to take wider voltage inputs. Inverter Welding System is simple to use, has a long life, is durable, and is well constructed. The inverter AC can change the welding current's frequency, and the welding current's frequency is 60 Hz, the same as the mains current. Ring projection welding and multi-point projection welding are the most common applications for inverter condenser welding machines.

Product Specifications:

Brand: Power X

Size: 20 to 400 A

Origin: India

Model: ARC 400 IGBT 3PH MOSFET

Duty Cycle: 60%

Efficiency: 85%

Insulation: F class

Housing Protection Grade: IP21

Power Voltage: 380VAC ±15%

Frequency: 50/60 Hz No-load

Voltage: 68 V

Key Features:

Safe

Environment friendly

Product Specifications

GENERAL

Brand:
Power X
Diameter of Rod:
2 to 5 mm
Dimensions:
560x300x480 mm
Frequency:
50/60 Hz
Input Power Capacity:
18 kVA
Input Voltage:
415 V AC
Model:
ARC 400 IGBT 3PH MOSFET
Net Weight:
33 Kg
No Load Voltage:
74 V
Output Current Range:
20-400 A
Plate Thickness:
3 to 20 mm
Power Factor:
0.93
Rated Input Current:
27.7 A
