Buy Point PWG 50G - 1 Phase, 0.5HP to 1.5HP Vertical Openwell Submersible Pump Online

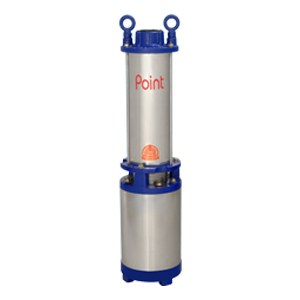

Point PWG 50G - 1 Phase, 0.5HP to 1.5HP Vertical Openwell Submersible Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Point PWG 50G - 1 Phase, 0.5HP to 1.5HP Vertical Openwell Submersible Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The 0.5HP to 1.5HP Openwell Submersible Pump is a reliable product option used for water flowing at variable levels. Its practical use at operations makes it a reliable openwell submersible pump that is a great option for heavy-duty water suction. This 1 Phase Submersible Pump provides users with a premium design and is engineered to be efficient for giving out water via an adequate size of 32mm outlet. Further, this pump operates over a wide range of functionalities with great returns on its cost. This submersible pump's minimalist design approach makes it a high demand product due to its cost-effective nature.

Product Specifications:

Cable Type: 3 Core Flat

Diffuser: Noryl

Discharge: 17 - 80 LPM

Head Range: 14 - 112 Mtrs

Benefits:

Reliable performance

Heavy-duty nature

Product Specifications

GENERAL

Area of Application:
Sprinklers, Domestic Applications, Nurseries, Hotels, Industries, Gardens & Fountains, Agricultural Irrigation, Fire Fighting, Mines, Drip Irrigation, Public Water Supply, Ponds
Brand:
Point Pumps
Cable Type:
3 Core Flat
Cooling Medium:
Water
Diffuser:
Noryl
Discharge:
17 - 80 LPM
Duty Type:
Continious (S1)
Head Range:
14 - 112 mts
Head vs Discharge at 0.37 KW, 0.50 HP:
37 Meters: 0 LPM, 36 Meters: 17 LPM, 35 Meters: 20 LPM, 33 Meters: 30 LPM, 30 Meters: 40 LPM, 28 Meters: 50 LPM, 23 Meters: 60 LPM, 20 Meters: 70 LPM, 14 Meters: 80 LPM
Impeller:
Noryl
Middle Bearing:
Bronze / Carbon Graphite
Model:
PWG 50G
Motor Body:
Stainless Steel
Mounting Standard:
NEMA
PH:
6.5 - 8.5
Pipe Size:
32 mm
Pump Shell:
SS304
Pumping Medium:
Clean Water free from soliids & Fibre free, Chemically and Mechanically Non-Aggressive
Shaft:
SS410 / SS431
Special Features:
Designed for wide voltage fluctuations, Rewindable motor portion, Easy maintenance, High operating efficiency, Dynamically Balanced Rotors & Impellers ensure long life, Water lubricated bearings, Smooth and Noiseless operations, Low friction carbon thrust
Specific Gravity:
1.004 Max
Speed:
2880 rpm
Stage:
5
Temperature:
< 35 Degree Centigrade
Thrust Bearing:
SS / Carbon Graphite
Voltage:
180v - 220v
