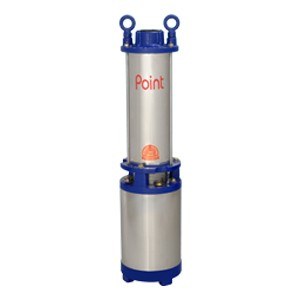

Point PWG 1515G - 1 Phase, 0.5HP to 1.5HP Vertical Openwell Submersible Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Point PWG 1515G - 1 Phase, 0.5HP to 1.5HP Vertical Openwell Submersible Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The 0.5HP to 1.5HP Openwell Submersible Pump counts for one of the most diverse Submersible Pump that is used over multi-purpose operations, making it a reliable submersible pump. This 0.5HP to 1.5HP Submersible Pump a great option for heavy-duty water suction. This 1 Phase Submersible Pump is best used in industrial and commercial areas as its engineering design allows maximum hydraulic efficiency. Further, this openwell submersible pump has created an efficient name for its premium design and is heavily engineered to be useful for a wide range of functionalities.

Product Specification:

Cable Type: 3 Core Flat

Discharge: 17 - 80 LPM

Head Range: 14 - 112 mts

Benefits:

Innovative design makes it light and portable

Affordable pricing point.

Impellers to ensure long life

Product Specifications

GENERAL

Area of Application:
Sprinklers, Domestic Applications, Nurseries, Hotels, Industries, Gardens & Fountains, Agricultural Irrigation, Fire Fighting, Mines, Drip Irrigation, Public Water Supply, Ponds
Brand:
Point Pumps
Cable Type:
3 Core Flat
Cooling Medium:
Water
Diffuser:
Noryl
Discharge:
17 - 80 LPM
Duty Type:
Continious (S1)
Head Range:
14 - 112 mts
Head vs Discharge at 1.10 KW, 1.50 HP:
112 Meters: 0 LPM, 102 Meters: 17 LPM, 100 Meters: 20 LPM, 92 Meters: 30 LPM, 84 Meters: 40 LPM, 75 Meters: 50 LPM, 60 Meters: 60 LPM, 46 Meters: 70 LPM, 32 Meters: 80 LPM
Impeller:
Noryl
Middle Bearing:
Bronze / Carbon Graphite
Model:
PWG 1515G
Motor Body:
Stainless Steel
Mounting Standard:
NEMA
PH:
6.5 - 8.5
Pipe Size:
32 mm
Pump Shell:
SS304
Pumping Medium:
Clean Water free from soliids & Fibre free, Chemically and Mechanically Non-Aggressive
Shaft:
SS410 / SS431
Special Features:
Designed for wide voltage fluctuations, Rewindable motor portion, Easy maintenance, High operating efficiency, Dynamically Balanced Rotors & Impellers ensure long life, Water lubricated bearings, Smooth and Noiseless operations, Low friction carbon thrust
Specific Gravity:
1.004 Max
Speed:
2880 rpm
Stage:
15
Temperature:
< 35 Degree Centigrade
Thrust Bearing:
SS / Carbon Graphite
Voltage:
180v - 220v
