Description

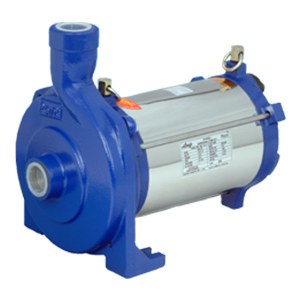

Point PSS50G - 1 Phase, 0.5HP-1.0HP Horizontal Openwell Submersible Pump - Point submersible pump has a heavy-duty stainless steel motor body. The motor of the pump is water lubricated bearing for long smooth operation. This open-well submersible pump is compatible with low friction flexible hose pipes. The pump has rigid cast iron impeller for delivering excellent, efficient performance. It is easy for the user to install this pump. There is no suction problem or no water level guard required. It is because of its horizontal construction that is always submerged into the water. Few of its typical applications include sprinkler and drip irrigation system, water pumping for agricultural activities, etc.

Product Specifications

GENERAL

Area of Application:
Sprinklers, Domestic Applications, Nurseries, Hotels, Industries, Gardens & Fountains, Agricultural Irrigation, Fire Fighting, Mines, Drip Irrigation, Public Water Supply, Ponds
Brand:
Point Pumps
Cable Type:
3 Core Round
Cooling Medium:
Water
Discharge:
1200-9000 LPH
Duty Type:
Continious (S1)
Head Range:
6 - 31 mts
Head vs Discharge at 0.37 KW, 0.5 HP:
24 Meters: 0 LPM, 22 Meters: 20 LPM, 20 Meters: 40 LPM, 17 Meters: 60 LPM, 12 Meters: 80 LPM
Impeller:
Noryl
Middle Bearing:
Carbon Graphite
Model:
PSS50G
Motor Body:
Stainless Steel
PH:
6.5 - 8.5
Phase:
1 mm
Pipe Size:
25 x 25 mm
Pump Casing:
FG200
Pumping Medium:
Clean Water free from solids & Fibre free, Chemically and Mechanically Non-Aggressive
Shaft:
SS410
Special Features:
Designed for wide voltage fluctuations, Rewindable motor portion, Easy maintenance, High operating efficiency, Carbon Bushes for Longer Life, Dynamically Balanced Rotors & Impellers ensure long life, Water lubricated bearings, Smooth and Noiseless operati
Specific Gravity:
1.004 Max
Speed:
2880 rpm
Temperature:
< 35 Degree Centigrade
Thrust Bearing:
SS / Carbon Graphite
Voltage:
160v - 240v
