Buy Point PSS110G - 1 Phase, 0.5HP-1.0HP Horizontal Openwell Submersible Pump Online

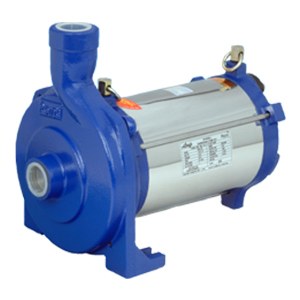

Point PSS110G - 1 Phase, 0.5HP-1.0HP Horizontal Openwell Submersible Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Point PSS110G - 1 Phase, 0.5HP-1.0HP Horizontal Openwell Submersible Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Point PSS110G is a 0.5HP-1.0HP Openwell Submersible Pump is an ideal pump that can work at variable water levels, making it one of the most flexible submersible pump for use. Sitting at the bottom of a well, this 0.5HP-1.0HP Submersible Pump can easily allow passage of heavy water loads with consistency. Further, this open well submersible pump comes in 3 core rounds, adding to its durability. This 1 phase submersible pump can be used in various applications, ranging from fire fighting to agriculture.

Product Specification:

1200-9000 LPH Discharge

6 - 31 meters head range

Model Code: PSS110G

Stainless Steel Body

PH: 6.5 - 8.5

Phase: 1 mm

Pipe Size: 25 x 25 mm

Pump Casing: FG200

Benefits:

Cost-effective

Light on electricity

Improved output

Product Specifications

GENERAL

Area of Application:
Sprinklers, Domestic Applications, Nurseries, Hotels, Industries, Gardens & Fountains, Agricultural Irrigation, Fire Fighting, Mines, Drip Irrigation, Public Water Supply, Ponds
Brand:
Point Pumps
Cable Type:
3 Core Round
Cooling Medium:
Water
Discharge:
1200-9000 LPH
Duty Type:
Continious (S1)
Head Range:
6 - 31 mts
Head vs Discharge at 0.75 KW, 1.0 HP:
31 Meters: 0 LPM, 29 Meters: 20 LPM, 27 Meters: 40 LPM, 24 Meters: 60 LPM, 22 Meters: 80 LPM, 20 Meters: 100 LPM, 17 Meters: 120 LPM, 9 Meters: 150 LPM
Impeller:
Noryl
Middle Bearing:
Carbon Graphite
Model:
PSS110G
Motor Body:
Stainless Steel
PH:
6.5 - 8.5
Phase:
1 mm
Pipe Size:
25 x 25 mm
Pump Casing:
FG200
Pumping Medium:
Clean Water free from solids & Fibre free, Chemically and Mechanically Non-Aggressive
Shaft:
SS410
Special Features:
Designed for wide voltage fluctuations, Rewindable motor portion, Easy maintenance, High operating efficiency, Carbon Bushes for Longer Life, Dynamically Balanced Rotors & Impellers ensure long life, Water lubricated bearings, Smooth and Noiseless operati
Specific Gravity:
1.004 Max
Speed:
2880 rpm
Temperature:
< 35 Degree Centigrade
Thrust Bearing:
SS / Carbon Graphite
Voltage:
160v - 240v
