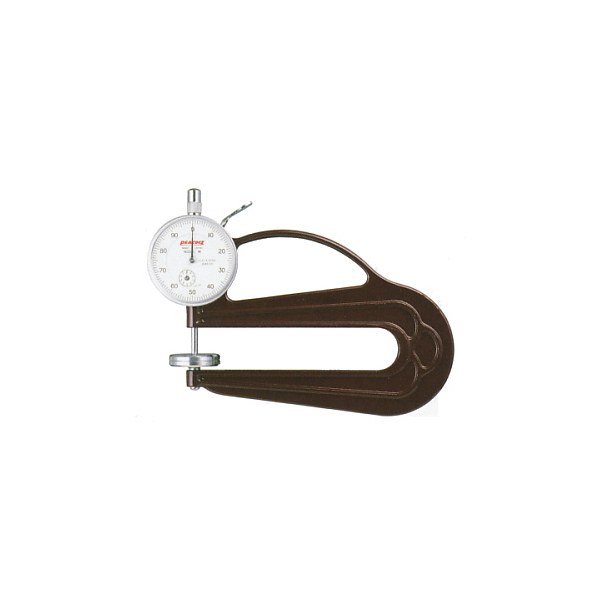

Peacock H is a dial-type thickness gauge having a measuring range of 0 - 10 mm. It is one of the most commonly used measuring and layout tools used for estimating the thickness of small parts, like metal, vinyl, rubber, paper, foil and other sheet material. In this group of thickness gauges, the object is measured by clamping it using a simple lever system. The dial system in this series of Peacock 10 mm Dial Thickness Gauge, makes it easier for the user to directly read the measurement values. It competes with many other well-known testing’s and measuring equipment’s in its accuracy due to a favorable parallelistic arrangement of its anvil and the contact point.
Product Attributes:
Throat Depth: 120 mm
Accuracy: ±20 µm
Graduation: 0.01 mm
Measuring range: 0 - 10 mm
10mm flat contact point and ceramic anvil
Benefits:
Accurate results
Easy-to-read dial
Simple leverage system
Measures any thin material
