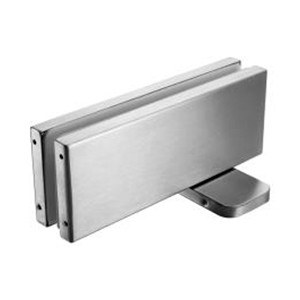

Ozone OCFH 100 - Concealed Floor Spring for Glass Door


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Ozone OCFH 100 - Concealed Floor Spring for Glass Door

Price

Available on Request
Select Size
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 5-6 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features

  • Requires No Digging Or Cutting Of Floor,Quick and easy installation with just 4 fasteners ;
  • Suitable door weight: Max 80kg.
  • Suitable door width: 750~950mm
  • Suitable door thickness: 8~12mm
  • Maximum opening 150 degrees and controlled 135 degrees
  • Durability-500,000 Cycles Tested
  • Suitable for Fire/Smoke Doors upto 40 min, Testing done by Intertek as per EN 1634-1:2008
  • Ambient temperature: -20 degrees to +50 degrees
  • Easy installation with base seat adjustable:
    • +3mm backward and forward,
    • +3mm left and right and
  • 4 degrees alignment adjustment
  • Compliance With EN 1154
  • Finish: SSS/PSS
Product Specifications

GENERAL

Bottom Spring Plate Length:
110 mm
Bottom Spring Plate Thickness:
9 mm
Bottom Spring Plate Width:
48 mm
Brand:
Ozone
Finish:
Polished Stainless Steel, Satin Stainless Steel
Manufactured as per Standard:
Compliance With EN 1154
Model:
OCFH-100
Patch Plate Length:
186 mm
Patch Plate Thickness:
36 mm
Patch Plate Width:
68 mm
Suitable Door Weight:
80 kgs
Suitable Door Width:
750 - 950 mm
Suitable Glass Thickness:
8 -12 mm
