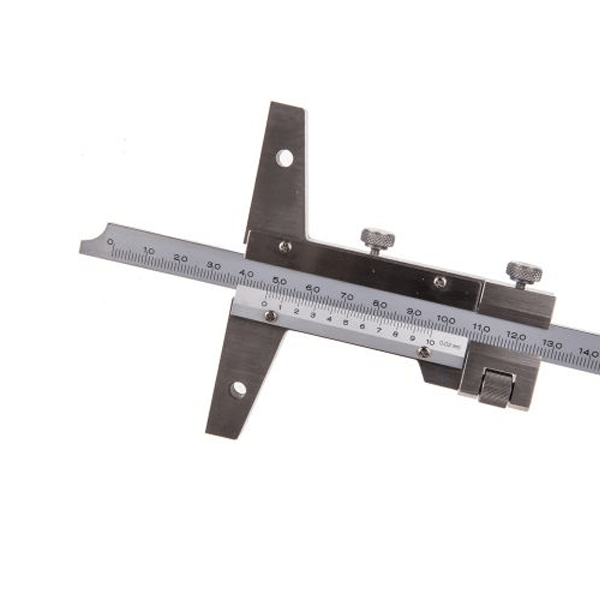

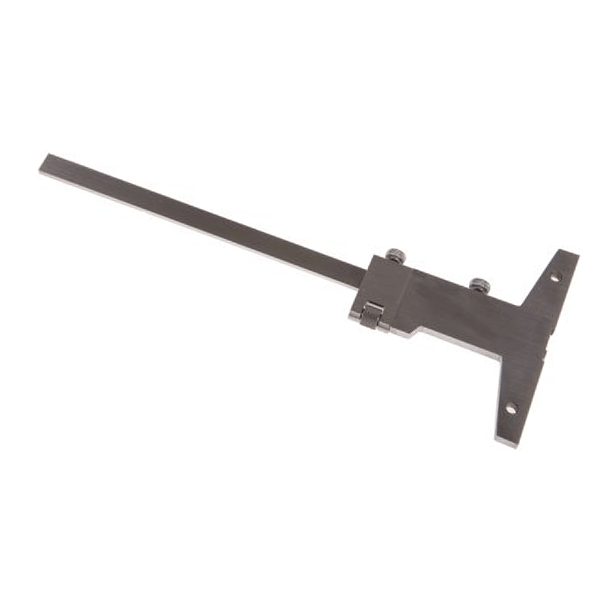

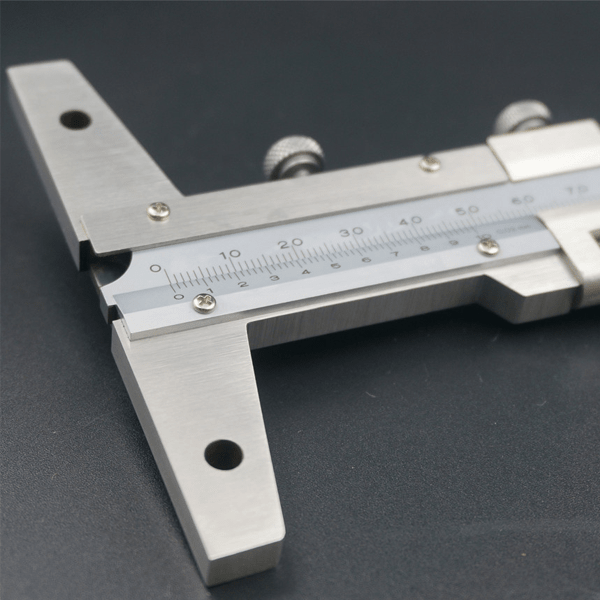

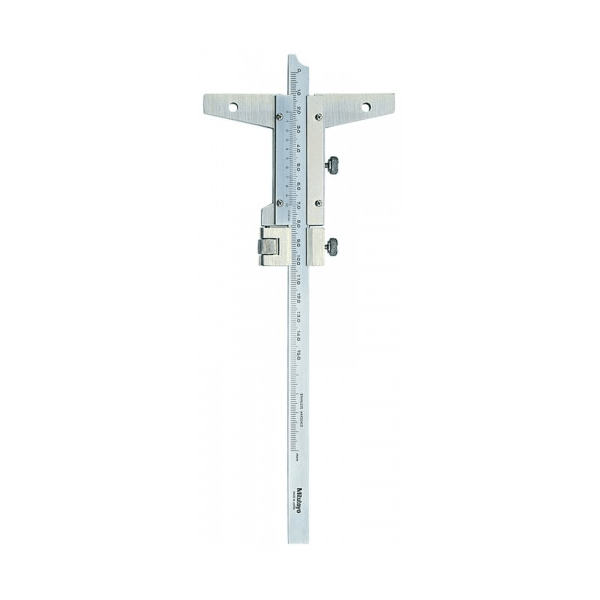

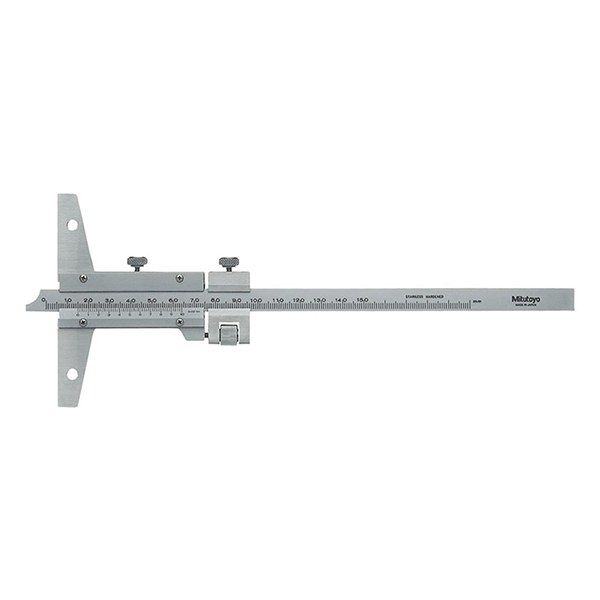

The Mitutoyo - 0-150 mm Vernier Depth Gauge with Fine Adjustment consists of a measurement range for series from 0 to 150 mm. Additionally, the resolution contained in the 0-150 mm Vernier Depth Gauge with Fine Adjustment is seemed to be 0.02 mm, which can also be termed as least count. This feature in the Vernier Depth Gauge with Fine Adjustment is mainly suitable for precise measurements. Apart from this, hardened steel is being used in the Vernier Depth Gauge, in which the base and the measuring faces are hardened and lapped. On the other hand, the optical wider extension is not included in the Depth Gauge but can be easily bought separately.
Product Specifications:
Brand: Mitutoyo
Model: 527 - 101
Product: Vernier Depth Gauge
Accuracy: 0.03 mm
Made In: Japan
Dial Reading: 0.02 mm
Size: 0 - 150 mm
Graduation: 0.02 mm
Base (W * T): 100 * 6.5 mm
Mass: 280 g
Inch-Metric: Metric
Type: Analog
Key Features:
Accurate readings are obtained
Very minimum errors
Durable
