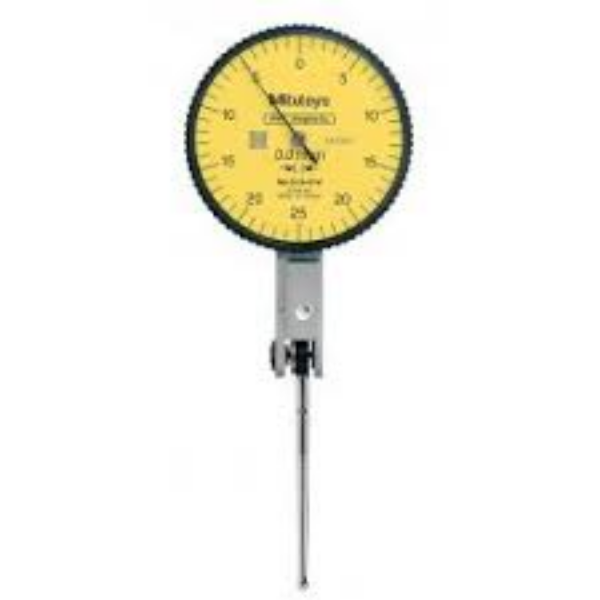

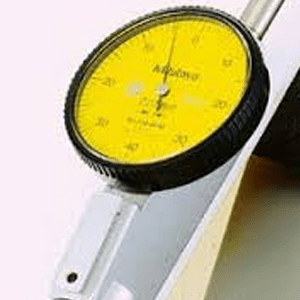

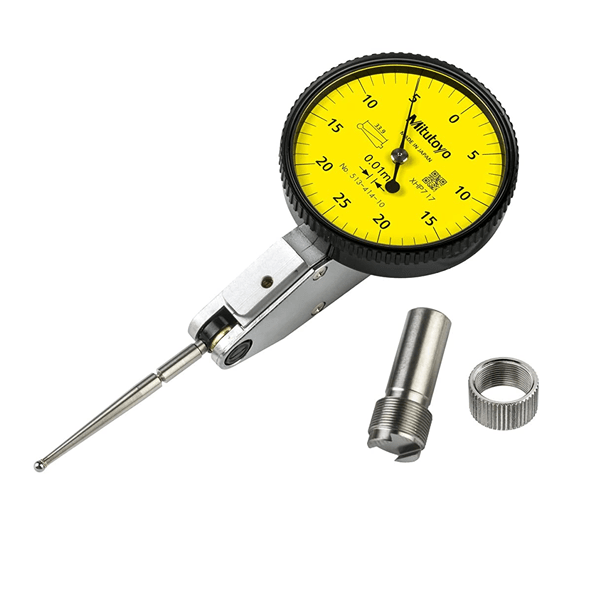

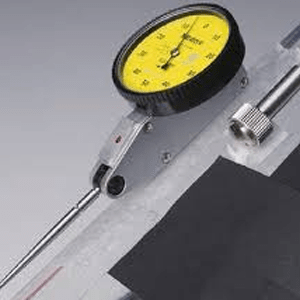

Mitutoyo 0-0.5 mm Horizontal Type Dial Test Indicator is a lever type and has high visibility and durability. The graduations in gauge can be easily read as the glass is made of anti-glare crystals. The 0-0.5 mm Horizontal Type Dial Test Indicator has an O-ring seal that lets the smooth process and prevents the dust and oil from reaching the dial section to provide smooth rotation. The stylus' length is mentioned on the dial face of the Indicator for quick replacement and reorder. There is a multi-layer coating of crystals present in the Dial Test Indicator to ensure high durability.
Product Specification-
Accuracy- 10 Micrometer
Brand- Mitutoyo
Made in- Japan
Graduation- 0.01
Measuring face- 0.2N or less
Model- 513- 414-10 E
Product- Horizontal Dial Test Indicator
Range- 0.5 mm
Resolution- 0.01 mm
