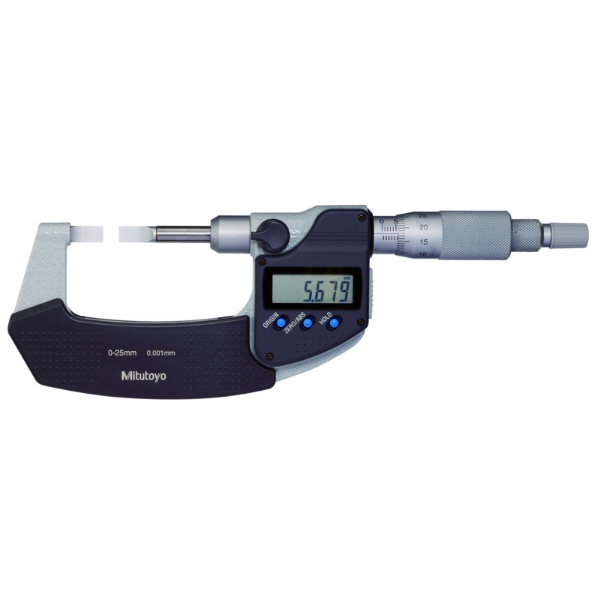

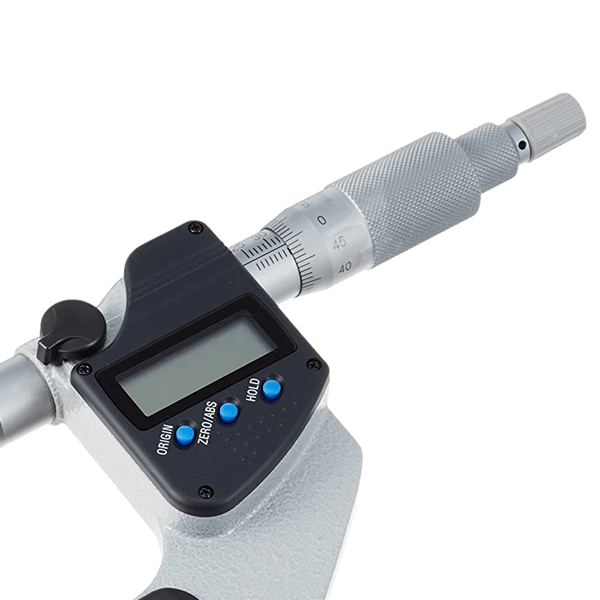

The product has blade anvil and spindle for measurement of groove diameter of keyways and shafts. The single value readout digital LCDs in metric units are provided for readability. The tool has a ratchet stop mechanism which helps in giving uniform pressure for precise and repeatable measurement. The SPS or statistical process control output transmits results to a computer or external device through a cable.
Product Specifications-
The accuracy of the reading is +/-0.003 mm, and the resolution is 0.001 mm.
The mass of the tool is 365 grams, and its range is 0-25 mm.
The product belongs to the brand Mitutoyo and is an organisation in Japan.

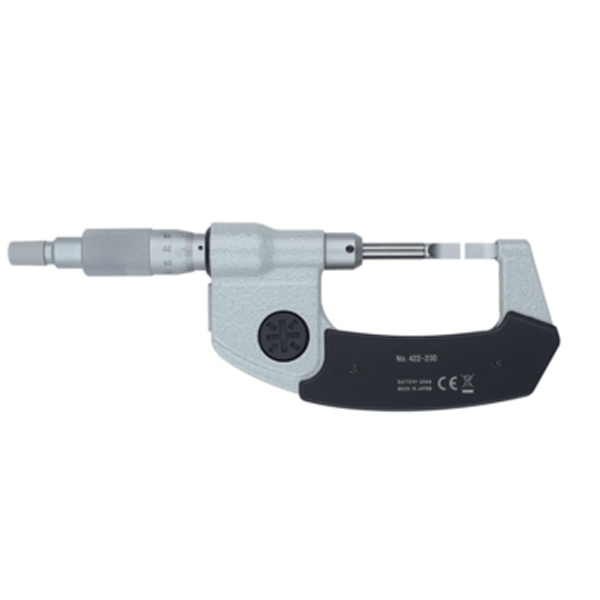

The model number of the product is 422-230
The measuring force of the product is 0-25 N.
The IP54 is rated for friction to penetration by dust and splashing liquid.

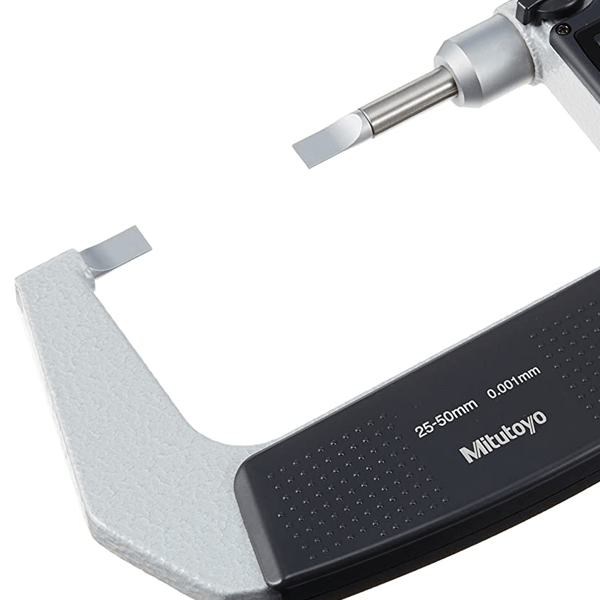

The unique feature of this product is that it has a 0.75 mm tip..
