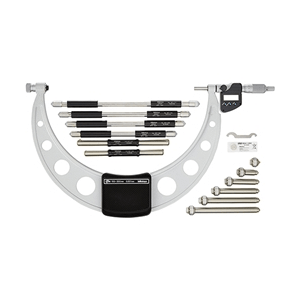

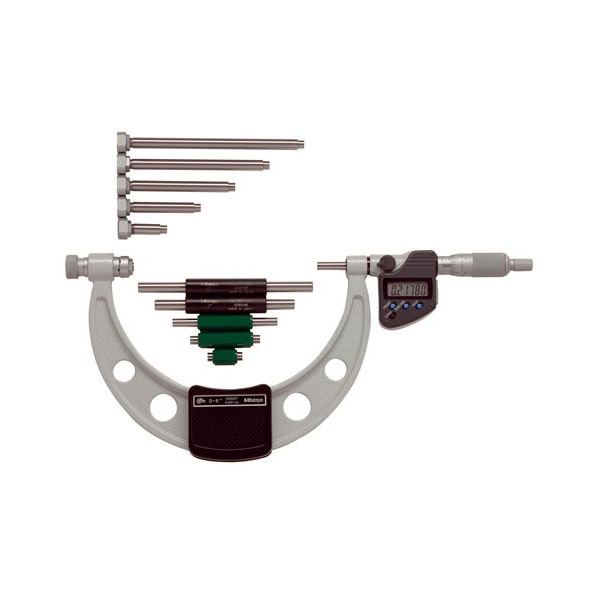

Manufactured in Japan, this Mitutoyo - 150-300 mm Outside Micrometer has a high resolution of 0.001 mm. The Accuracy ranges from +/-(4+R/75) micrometre, where R is the maximum range (in mm). The output uses an SPC cable with a data switch, and the display is of LCD type. The Outside Micrometer includes 6 Anvils (which is interchangeable) and 6 Standards. The battery is of SR44 type with a life of approximately one year under normal use. The 150-300 mm Outside Micrometer functions include Zero / ABS, data hold, preset, data output, function lock, 2 presets, low voltage alarm, counting value composition error alarm. The finishing on this Micrometer is done by applying a layer of satin chrome. The Outside Micrometer also has a spindle lock and a spindle pitch of 0.5 mm. The measuring force of the Micrometer is estimated to be 5 to 10N.
Product Specifications:
Battery: SR44
Brand: Mitutoyo
Country of Origin: Japan
Display: LCD
Interchangeable Anvils: 0,25,50,75,100.125 mm
Mass: 1.88 kg
Measuring Faces: Carbide Tipped
Model: 340 252 30
Parallelism: 2 micrometre
Product: 150-300 mm Outside Micrometer
Range: 150 to 300 mm
Resolution: 0.001 mm
Key features:
High resolution
LCD
Precise finishing
