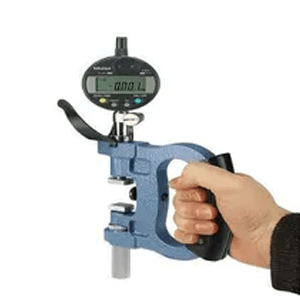

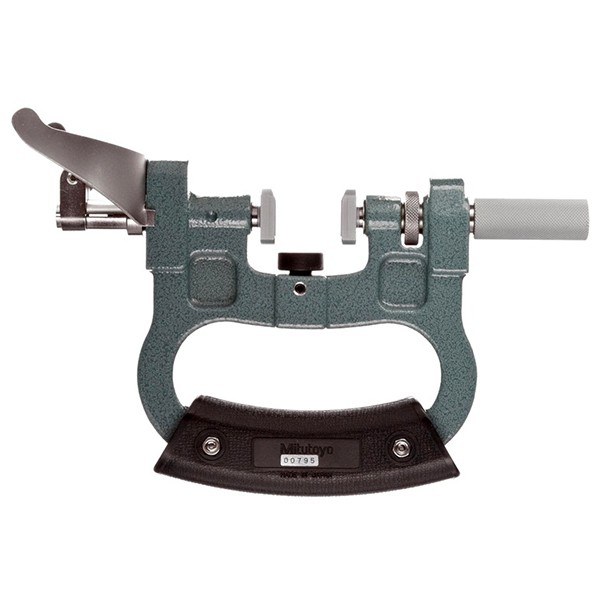

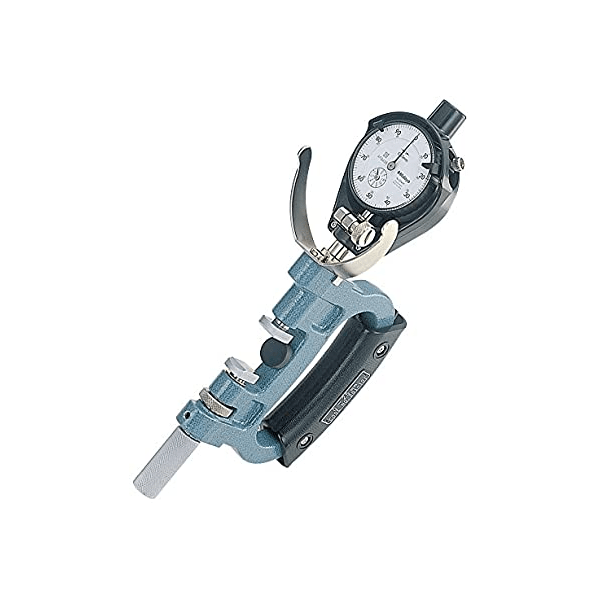

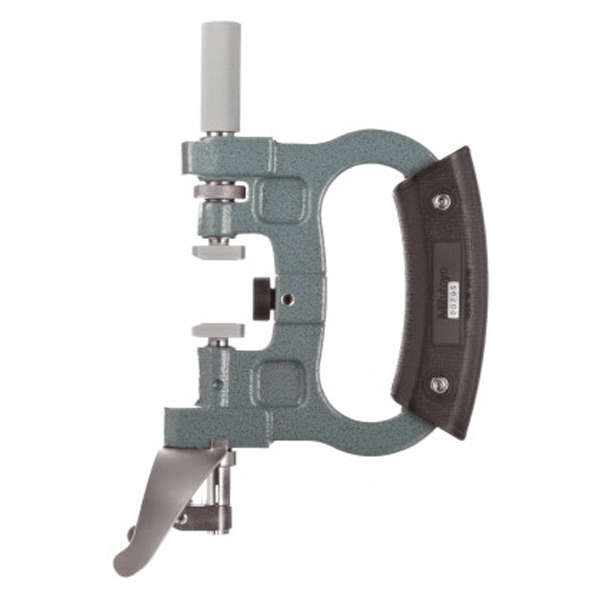

These Mitutoyo - 25-50 mm Dial Snap Gauges without Dial Indicator are designed to quickly estimate the diameters of cylinders and shafts in machining processes using the GO/NG method. 25-50 mm Dial Snap Gauges without Dial Indicator provide the advantage of an adjustable measuring range with an adjustment nut. In addition, wide, flat carbide anvils, 2mm anvil with retraction stroke are provided with this Dial Snap Gauge. The Mitutoyo - 25-50 mm Dial Snap Gauges without Dial Indicator allows vertical mounting. Moreover, the 25-50 mm Dial Snap Gauges is provided with a special grip to steady the Dial Indicator.
Product Specifications:
Brand: Mitutoyo
Range: 25-50mm
Country of origin: Japan
Model: 201 102
Parallelism: 5µm
Measuring Force: 15N +/- 3N
Weight: 660 grams
Key Features:
Good quality
High performance
Durable
Handy
It can be used with 2046SB and 2109SB-10 Dial Indicators
