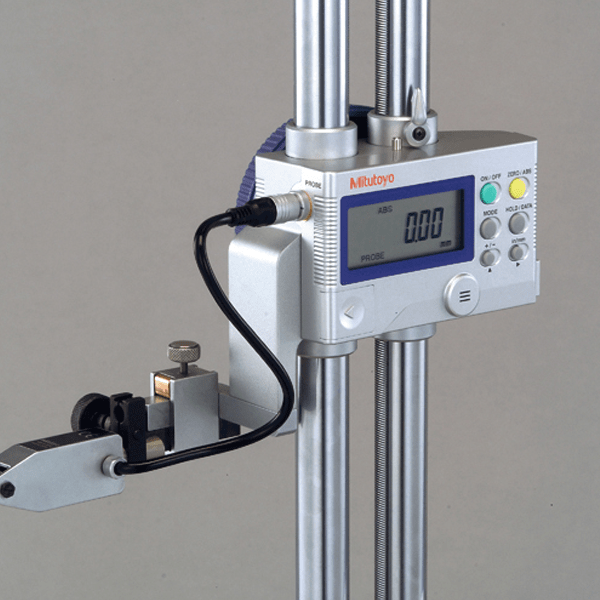

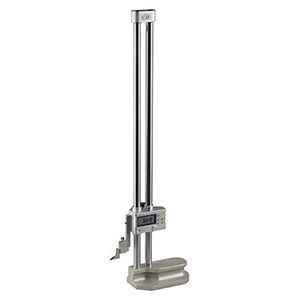

Mitutoyo - 0-450 mm Standard Digimatic Height Gauge with SPC Data Output has a wide measurement range from low to high with a selectable resolution of 0.0005”/0.01mm or 0.0002”/0.005mm. The 0-450 mm Standard Digimatic Height Gauge with SPC Data Output comes with an LCD digital readout that displays sharp figures for viewing ease. Additionally, it has a hand-operated feed wheel for measurement ease, selectable for coarse or fine travel. Furthermore, the Standard Digimatic Height Gauge with SPC Data Output has two reference height presets for comparison measurements. Standard Digimatic Height Gauge comes with an SR44 Battery power source. The Height Gauge weighs 5 kgs with a response speed of 500 mm/s.
Product Specifications:
Brand: Mitutoyo
Country of Origin: Japan
Product: 0-450 mm Standard Digimatic Height Gauge with SPC Data Output
Product Dimensions:98.81 x 20.32 x 32.77 cm; 5 Kilograms
Item Height: 12.9 Inches
Item Width: 8 Inches
Range: 0-18"
Resolution: .0005''/0.01mm (.0002''/0.005mm)
Accuracy: ±.002''
Repeatability: 0.01mm
Max. response speed 500mm/s.
Key Features:
Easy-to-use standard type
Carbide-tipped scriber is provided
The double-column structure ensures high measuring accuracy
With SPC data output
