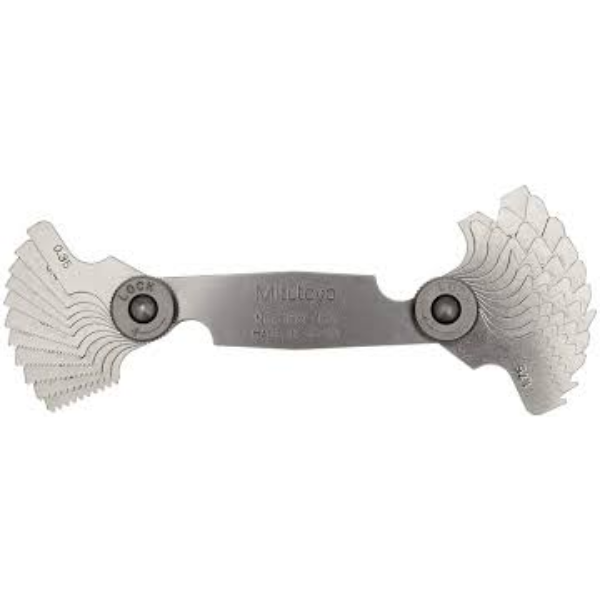

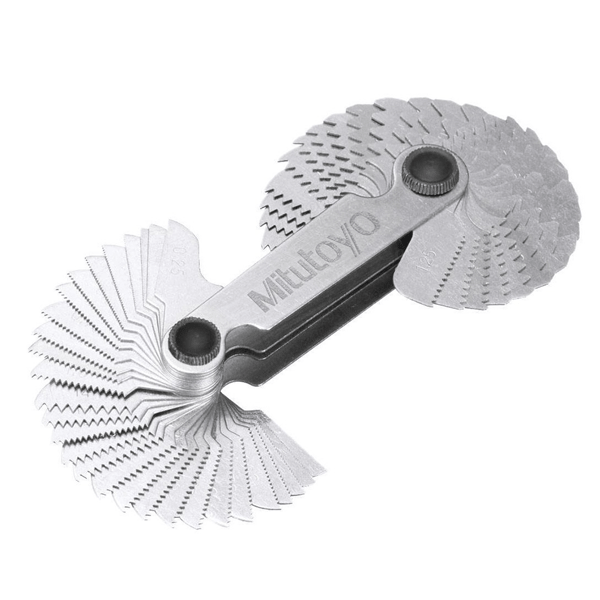

The product by Mitutoyo, model number 188 130 is used to measure a screw thread pitch. The thread pitch size is stamped on each gage. It is prepared by steel, and the tool is robust. It includes metric, unified and Whitworth screw pitch gages. This tool allows the user to find out the thread's type and categorise it by its shape and pitch.
Product Specifications:
The composition of the product is 0.4, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7 mm.
The range of the tool is 0.35-6 mm, and the weight is 50 grams.
It is a metric screw pitch gauge originated in Japan.
The tool contains 22 leaves.

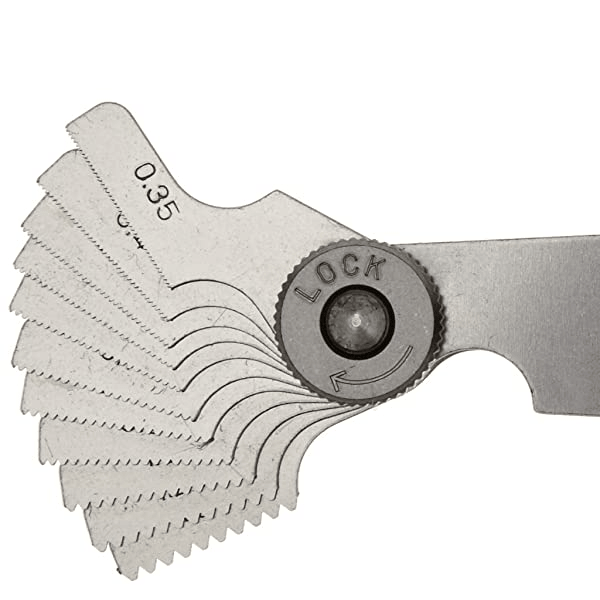

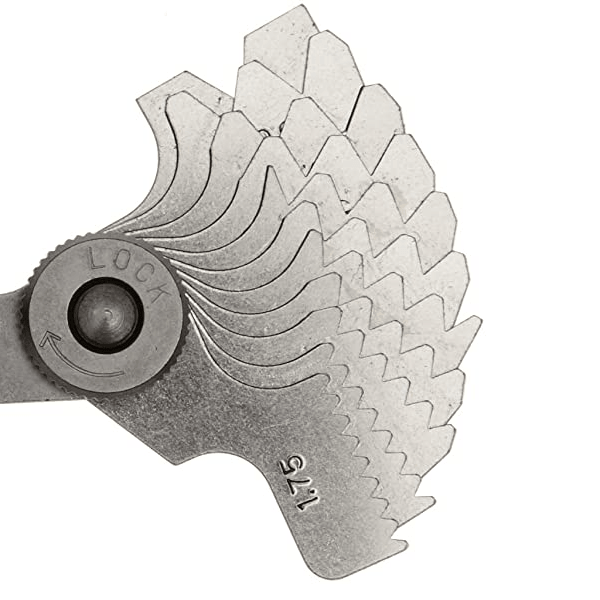

Thread pitch size is stamped on each gage.
The height and width of the tool is 2 cm and 3 cm.
The product dimension is 10*3*2 cm.
